C9500-32QC-A Cisco Catalyst 9500 Series 32-Port 40G Network Switch
C9500-32QC-A Overview
The C9500-32QC-A is a high-performance 32-port 40G switch from the Cisco Catalyst 9500 Series, featuring the Network Advantage License. Designed for the enterprise campus, it is a next-generation core and aggregation layer switch, offering programmability and serviceability, built to support security, IoT, and cloud applications.
25,899.00 AED
C9500-32QC-A Technical Specifications
Cisco Catalyst 9500 Series High-Performance 32-Port 40G Switch, NW Adv. License
Capacity
- FNF entries: 96000
- Host IPv4 routes: 90000
- Host IPv6 routes: N/A
- Indirect IPv4 routes: 212000
- Indirect IPv6 routes: N/A
- Multicast scale: 32000
- QoS ACL scale: 16000
- Routing table entries: 80000
- Security ACL scale: 270000
- Switched virtual interfaces (SVIs): 4000 VLAN IDs
Dimensions & Weight
- Depth: 18 in
- Height: 1.7 in
- Weight: 21.85 lbs
- Width: 17.5 in
Environmental Parameters
- Operating Humidity: 5 – 90% (non-condensing)
- Storage Humidity: 5 – 95% (non-condensing)
- Max Operating Temperature: 104 °F
- Max Storage Temperature: 149 °F
- Min Operating Temperature: 32 °F
- Min Storage Temperature: -4 °F
Flash Memory
Header
- Brand: Cisco
- Edition: Network Advantage
- Manufacturer: CISCO DS HARDWARE DIRECT
- Model: 9500
- Packaged Quantity: 1
- Product Line: Cisco Catalyst
Interface Provided
- Connector Type: QSFP, Qty: 32
- 100Gbit/40Gbit LAN: Qty: 2
- USB 3.0: Type: USB 3.0
Miscellaneous
- Color Category: Gray
- Compliant Standards: Various international standards including RoHS 5/6
- Encryption Algorithm: 256-bit AES
- Height (Rack Units): 1
- MTBF: 307,200 hours
Networking
- Advanced Switching: Layer 3
- Features: Extensive support for protocols and features including ACL, QoS, and more
- Form Factor: Rack-mountable
- Manageable: Yes
- Ports Qty: 32
Performance
- Forwarding Rate: 1 Bpps
- Switching Capacity: 3.2 Tbps
Power Device
- Power Provided: 650 Watt
- Power Redundancy: Optional
Processor
- Clock Speed: 2.4 GHz
RAM
- Installed Size: 16 GB
Software
- Type: Cisco IOS XE 16.8.1
Related Products

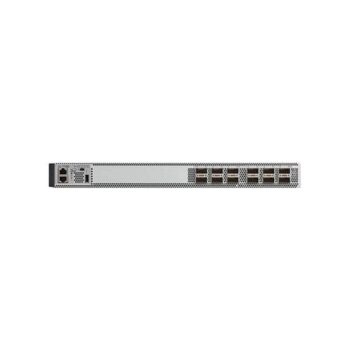

C9500-12Q-E Overview
C9500-12Q-E is a model within the Cisco Catalyst 9500 Series, designed as an advanced enterprise-class core and aggregation layer switch. This next-generation switch is built for programmability and serviceability, supporting security, IoT, and cloud applications. It is the first enterprise-targeted switch line to offer 40 Gigabit Ethernet capabilities.
C9500-24Q-EDU Overview
The Cisco Catalyst 9500 Series Switches represent the next generation of enterprise-class core and aggregation layer switches, designed for full programmability and serviceability. Leveraging an x86 CPU, this series is Cisco’s premier fixed core and aggregation platform, tailored for security, IoT, and cloud applications, and is the first in the industry to offer purpose-built 40 Gigabit Ethernet switches for enterprise campuses.
C9500-24X-E Overview
The C9500-24X-E is a Cisco Catalyst 9500 Series 16-port switch featuring 10G connectivity and an 8 x 10GE Network Module with an Essentials License. Designed for enterprise use, it offers programmability and serviceability, making it ideal for security, IoT, and cloud applications. This switch is the first in its class to support 40 Gigabit Ethernet for enterprise campuses.

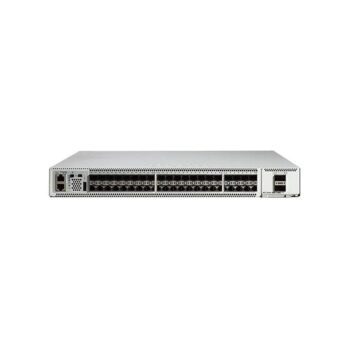

C9500-40X-E Overview
C9500-40X-E is a member of the Cisco Catalyst 9500 Series. These next-generation switches are designed for enterprise-class core and aggregation layers, offering full programmability and serviceability. Built on an x86 CPU, they represent Cisco’s premier fixed core and aggregation platform, optimized for security, IoT, and cloud computing, and are the first in the industry to provide 40 Gigabit Ethernet capabilities.

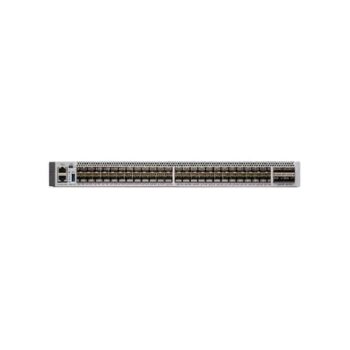

C9500-48Y4C-EDU Overview
The Cisco Catalyst 9500 Series represents the forefront of enterprise-class core and aggregation layer switches, featuring complete programmability and serviceability. Built on an x86 CPU, this series is designed for security, IoT, and cloud environments, establishing itself as the first purpose-built 40 Gigabit Ethernet switch line for enterprise campuses.

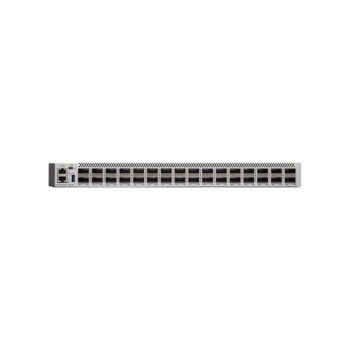

C9500-32QC-E Overview
