C9500-32QC-A Cisco Catalyst 9500 Series 32-Port 40G Network Switch
C9500-32QC-A Overview
The C9500-32QC-A is a high-performance 32-port 40G switch from the Cisco Catalyst 9500 Series, featuring the Network Advantage License. Designed for the enterprise campus, it is a next-generation core and aggregation layer switch, offering programmability and serviceability, built to support security, IoT, and cloud applications.
25,899.00 AED
C9500-32QC-A Technical Specifications
Cisco Catalyst 9500 Series High-Performance 32-Port 40G Switch, NW Adv. License
Capacity
- FNF entries: 96000
- Host IPv4 routes: 90000
- Host IPv6 routes: N/A
- Indirect IPv4 routes: 212000
- Indirect IPv6 routes: N/A
- Multicast scale: 32000
- QoS ACL scale: 16000
- Routing table entries: 80000
- Security ACL scale: 270000
- Switched virtual interfaces (SVIs): 4000 VLAN IDs
Dimensions & Weight
- Depth: 18 in
- Height: 1.7 in
- Weight: 21.85 lbs
- Width: 17.5 in
Environmental Parameters
- Operating Humidity: 5 – 90% (non-condensing)
- Storage Humidity: 5 – 95% (non-condensing)
- Max Operating Temperature: 104 °F
- Max Storage Temperature: 149 °F
- Min Operating Temperature: 32 °F
- Min Storage Temperature: -4 °F
Flash Memory
Header
- Brand: Cisco
- Edition: Network Advantage
- Manufacturer: CISCO DS HARDWARE DIRECT
- Model: 9500
- Packaged Quantity: 1
- Product Line: Cisco Catalyst
Interface Provided
- Connector Type: QSFP, Qty: 32
- 100Gbit/40Gbit LAN: Qty: 2
- USB 3.0: Type: USB 3.0
Miscellaneous
- Color Category: Gray
- Compliant Standards: Various international standards including RoHS 5/6
- Encryption Algorithm: 256-bit AES
- Height (Rack Units): 1
- MTBF: 307,200 hours
Networking
- Advanced Switching: Layer 3
- Features: Extensive support for protocols and features including ACL, QoS, and more
- Form Factor: Rack-mountable
- Manageable: Yes
- Ports Qty: 32
Performance
- Forwarding Rate: 1 Bpps
- Switching Capacity: 3.2 Tbps
Power Device
- Power Provided: 650 Watt
- Power Redundancy: Optional
Processor
- Clock Speed: 2.4 GHz
RAM
- Installed Size: 16 GB
Software
- Type: Cisco IOS XE 16.8.1
Related Products
C9500-48Y4C-E Overview
The C9500-48Y4C-E is an advanced Cisco Catalyst 9500 Series switch featuring 48 ports of 25G connectivity with a Network Essentials license. This next-generation enterprise-class switch is designed for core and aggregation layers, offering programmability and serviceability. Built on an x86 CPU, it excels in security, IoT, and cloud applications, marking a significant advancement in 40 Gigabit Ethernet technology for enterprise campuses.
C9500-48X-A Overview
The C9500-48X-A is a 48-port 10G bundle from the Catalyst 9500 Series, featuring Network Advantage. Designed for enterprise-class core and aggregation layers, these switches offer full programmability and serviceability. With an x86 CPU, they are purpose-built for security, IoT, and cloud applications, making them the first 40 Gigabit Ethernet switches tailored for enterprise campuses.
C9500-40X-2Q-E Overview
The C9500-40X-2Q-E model is a Catalyst 9500 bundle featuring 40 x 10G and 2 x 40G ports, designed for Network Essentials. As part of the Cisco Catalyst 9500 Series, these switches are next-generation solutions for enterprise core and aggregation layers, emphasizing programmability and security, particularly for IoT and cloud environments.
C9K-PWR-C4-BLANK Overview
This blank cover plate is designed specifically for the Catalyst 9500 power supply, ensuring optimal protection and functionality. It’s an essential accessory for maintaining the integrity of your Cisco equipment.
C9500-32C-E Overview
The C9500-32C-E is a high-performance 32-port 100G switch from the Cisco Catalyst 9500 Series, featuring NW Essential License. These switches represent the next evolution in enterprise-class core and aggregation solutions, designed for programmability and serviceability, making them ideal for security, IoT, and cloud environments.
SSD-120G Overview
Enhance your server’s storage with the Cisco Solid State Drive. With a capacity of 120 GB, it is designed to handle enterprise-level data and backups efficiently. This hot-swap SSD incorporates a USB 3.0 interface, ensuring rapid data transfer for your critical applications.
C9500-12Q-E Overview
C9500-12Q-E is a model within the Cisco Catalyst 9500 Series, designed as an advanced enterprise-class core and aggregation layer switch. This next-generation switch is built for programmability and serviceability, supporting security, IoT, and cloud applications. It is the first enterprise-targeted switch line to offer 40 Gigabit Ethernet capabilities.
C9500-16X-1A Overview
The Cisco Catalyst 9500 Series Switches represent the forefront of enterprise-class core and aggregation layer switches, delivering unmatched programmability and serviceability. Powered by an x86 CPU, this series is specifically designed for security, IoT, and cloud environments, marking a significant advancement as the first purpose-built 40 Gigabit Ethernet switch line for enterprise campuses.
C9500-48Y4C-EDU Overview
The Cisco Catalyst 9500 Series represents the forefront of enterprise-class core and aggregation layer switches, featuring complete programmability and serviceability. Built on an x86 CPU, this series is designed for security, IoT, and cloud environments, establishing itself as the first purpose-built 40 Gigabit Ethernet switch line for enterprise campuses.
C9500-32QC-E Overview
The C9500-32QC-E is a high-performance 32-port 40G switch from the Cisco Catalyst 9500 Series, equipped with Network Essentials License. Designed for enterprise core and aggregation layers, it offers full programmability and serviceability, making it ideal for security, IoT, and cloud applications.
C9500-12Q-EDU Overview
The Cisco Catalyst 9500 Series represents the next evolution in enterprise-grade core and aggregation switches, offering full programmability and enhanced serviceability. Powered by an x86 CPU, this series is designed for security, IoT, and cloud applications, making it the first purpose-built 40 Gigabit Ethernet switch line for enterprise campus environments.

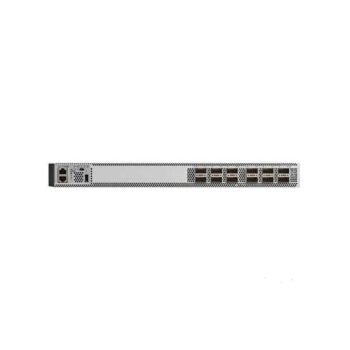

C9500-12Q-A Overview
