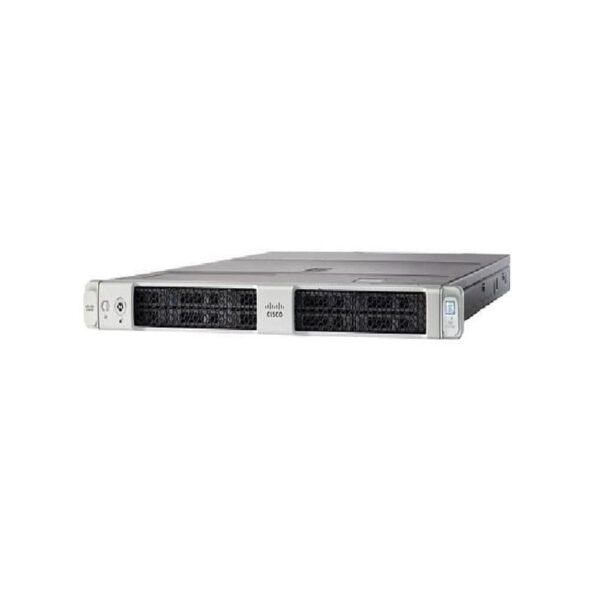

UCS-SP-C220M5-B1 Cisco Systems SP C220 M5SX Server with Dual Xeon 3106
UCS-SP-C220M5-B1 Overview
The UCS C220 M5 SFF server enhances Cisco’s Unified Computing System offerings in a compact 1U design, featuring the Intel® Xeon® Processor Scalable Family, 24 DIMM slots supporting up to 128GB of 2666MHz DIMMs, and two PCI Express (PCIe) 3.0 slots. It accommodates up to 10 SAS/SATA HDDs or SSDs, along with a dedicated internal slot for a 12G SAS storage controller card.
6,229.00 AED
UCS-SP-C220M5-B1 Technical Specifications
Cisco Systems SP C220 M5SX 2X3106 4X16GB
General Information
Product Name: SP C220 M5SX 2X3106 4X16GB Memory VIC1387
Manufacturer Part Number: UCS-SP-C220M5-B1
Product Series: C220 M5
Product Type: Server
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: Up to 16 MB
I/O Expansions
Total Expansion Bays: 10
Internal 2.5″ Bays: 10
Hot Swap Bays: Yes
Memory
Standard Memory: 64 GB
Maximum Memory: 3 TB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Occupied Memory Slots: 4
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Power Description
Number of Supported Power Supplies: 2
Processor & Chipset
Supported Processors: 2
Installed Processors: 2
Processor Manufacturer: Intel
Processor Type: Xeon Bronze
Processor Model: 3106
Processor Cores: Octa-core (8 Core)
Processor Speed: 1.70 GHz
Physical Characteristics
Form Factor: Rack
Rack Height: 1U Rack Mount
Height: 1.7″
Width: 19″
Depth: 31″
