UCS-SP-C220M5-A3 Cisco Systems C220 M5SX Server with 2X5120
UCS-SP-C220M5-A3 Overview
The UCS C220 M5 SFF server enhances Cisco’s Unified Computing System with its 1U design, featuring the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz memory, and support for up to 128GB capacities. It also includes two PCI Express (PCIe) 3.0 slots and a dedicated internal slot for a 12G SAS storage controller card.
11,834.00 AED
UCS-SP-C220M5-A3 Technical Specifications
Cisco Systems C220 M5SX 2X5120 6X16GB
General Information
Product Name: SP C220 M5SX 2X5120 6X16GB Memory Single Rank
Manufacturer Part Number: UCS-SP-C220M5-A3
Product Series: C220 M5
Product Type: Server
Controllers
Controller Type: 12Gb/s SAS
Ethernet Technology: 40 Gigabit Ethernet
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200e
Graphics Memory Capacity: Up to 8 MB
I/O Expansions
Total Expansion Bays: 10
Internal 2.5″ Bays: 10
Hot Swap Bays: Yes
Memory
Standard Memory: 96 GB
Maximum Memory: 3 TB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Occupied Memory Slots: 6
Network & Communication
Ethernet Technology: 40 Gigabit Ethernet
Power Description
Input Voltage: 120 V AC, 230 V AC
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 770 W
Redundant Power Supply: Yes
Related Products
3TK86AA-AA Overview
This 4GB DDR4-2400MHz Single Rank Unbuffered 1.2V 260-pin CL15 SODIMM from AddOn is designed for seamless compatibility with your system. Boosting your memory is the most effective way to enhance your system’s performance. Our memory modules are manufactured to meet stringent JEDEC standards, ensuring they meet or exceed the requirements of Tier 1 OEMs.
AX4U2666316G16-SBF Overview
Introducing the AX4U2666316G16-SBF, a high-performance ADATA XPG Flame 16GB PC4-21300 DDR4 memory module. Operating at a speed of 2666MHz, this non-ECC unbuffered memory features a CL16 latency (16-16-16) and is designed with a 288-pin DIMM configuration, ensuring reliability and efficiency at 1.2V.

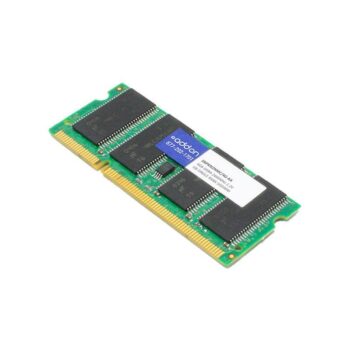

3TQ36AA-AA Overview
This AddOn HP Compatible 16GB DDR4-2666MHz dual rank x8 unbuffered 1.2V 260-pin CL15 SODIMM is designed for reliable performance in your system. Enhancing your memory is the most effective way to boost system efficiency. Our memory modules adhere to stringent JEDEC standards, ensuring they meet or exceed Tier 1 OEM specifications. With 16GB capacity and 2666 MHz speed, experience seamless multitasking and performance.
3TK88AA-AA Overview
This HP compatible 8GB DDR4-2666MHz Single Rank Unbuffered 1.2V 260-pin CL15 SODIMM module ensures seamless compatibility with your system. Upgrading your memory is the most effective way to boost your system’s performance. Our memory modules adhere to strict JEDEC standards, ensuring they meet or surpass the requirements of Tier 1 OEMs.

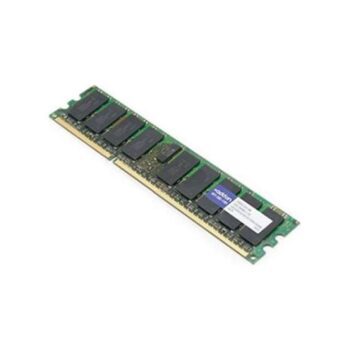

AM2400D48R4LRN/128G Overview
