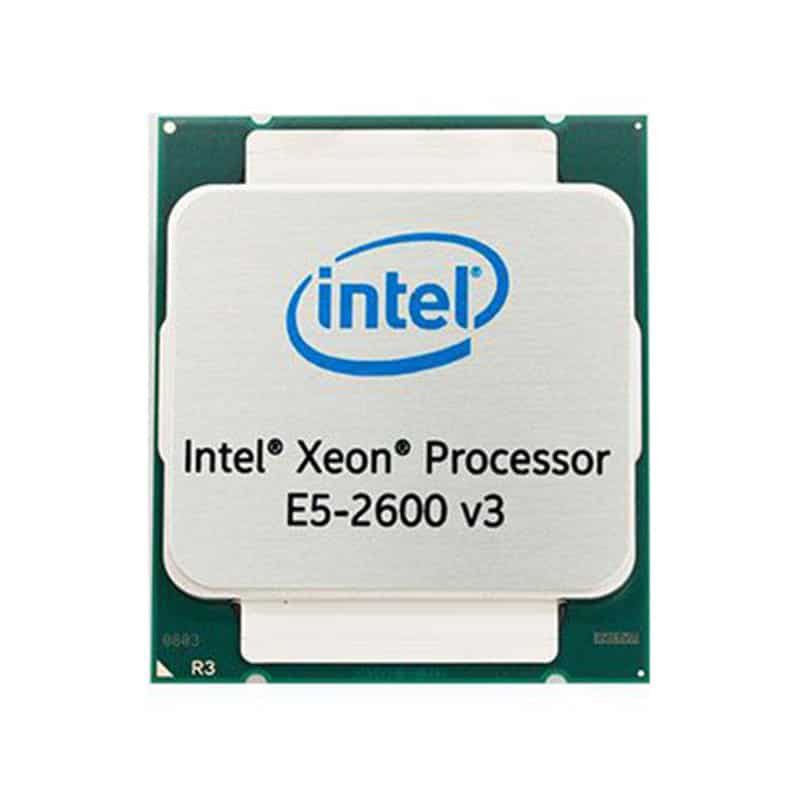

UCS-CPU-E52695DC= Cisco Intel Xeon E5-2695 v3 2.30GHz 14-Core Processor
UCS-CPU-E52695DC= Overview
The Cisco is a performance-optimized server processor upgrade, based on the Intel Xeon E5-2695 v3, and engineered for use in Cisco UCS (Unified Computing System) environments. As part of the E5-2600 v3 family, this processor leverages the Haswell-EP architecture and is built using 22nm process technology, offering a notable leap in energy efficiency, core density, and processing throughput compared to previous-generation Ivy Bridge CPUs. Operating at a base clock speed of 2.30 GHz, the E5-2695 v3 provides 14 physical cores and supports 28 threads through Intel Hyper-Threading Technology, delivering strong parallel processing capabilities.
UCS-CPU-E52695DC= Technical Specifications
Cisco 2.30GHz 14-Core Intel Xeon E5-2695 v3 Processor Upgrade
Brand: Cisco
Type: Server Processor
Processor Family: E5-2600v3
Series: Intel Xeon Processor
Core Model: E5-2695V3
Code Name: Haswell
Core Stepping: C0
Manufacturing Technology: 22 nm
CPU ID: 306F2
Number of Cores: 14
Threads: 28
Base Clock Speed: 2.30 GHz
L3 Cache: 35MB
QPI: 9.60 GT/s
Thermal Power: 120 Watts
VID Voltage Range: 0.65V–1.30V
Socket Type: LGA 2011-3
Related Products
UCS-CPU-4108 Overview
The UCS-CPU-4108 is a powerful Cisco processor featuring a clock speed of 1.80GHz, 9.60GT/s UPI, and an 11MB L3 cache. Designed for server applications, this processor is a reliable choice for enhancing performance.
UCS-CPU-E5-2430L Overview
Upgrade your server with the UCS-CPU-E5-2430L, a powerful Cisco 2.00GHz processor featuring a 7.20GT/s QPI and a substantial 15MB L3 Cache. This Intel Xeon E5-2430L model boasts 6 cores, making it an excellent choice for demanding applications.
UCSCPUE52407 Overview
Upgrade your server with the UCSCPUE52407 Intel Xeon E5-2407 processor. Operating at a speed of 2.20GHz with a 6.40GT/s QPI and featuring a 10MB L3 cache, this quad-core processor is designed for optimal performance in demanding environments.
UCS-CPU-E5-2450 Overview
The UCS-CPU-E5-2450 is an Intel Xeon processor featuring a clock speed of 2.10GHz, 20MB L3 Cache, and 8 cores. Designed for Cisco servers, this upgrade delivers robust performance with an 8.00GT/s QPI and is compatible with Socket FCLGA1356 for seamless integration.
UCS-CPU-E52667DC= Overview
The UCS-CPU-E52667DC= is an Intel Xeon E5-2667 v3 8-Core Processor, operating at 3.20GHz with a robust 20MB L3 Cache and 9.60GT/s QPI, designed for server upgrades and optimal performance.
UCS-CPU-4112 Overview
The UCS-CPU-4112 is a Cisco 2.60GHz quad-core processor featuring a 9.60GT/s UPI and an 8.25MB L3 cache. This LGA3647 Intel Xeon Silver 4112 upgrade is designed for enhanced server performance and efficiency.
UCS-CPU-5122 Overview
Upgrade your server with the UCS-CPU-5122 Cisco Intel Xeon 5122 Quad-Core Processor, featuring a base clock speed of 3.60 GHz, Socket 3647 compatibility, and a robust cache of 4 MB and 16.50 MB. Experience enhanced 64-bit processing and an overclocking capability of up to 3.70 GHz, all within a 14 nm architecture and a power rating of 105 W.
UCS-CPU-6140 Overview
Introducing the UCS-CPU-6140, a powerful Cisco Intel Xeon Gold 6140 processor featuring 18 cores and a base clock speed of 2.30 GHz. This server processor is designed for high-performance computing, ensuring optimal efficiency and reliability for demanding applications.
UCS-CPU-6134M Overview
Upgrade your server with the UCS-CPU-6134M Cisco Intel Xeon Gold 6134M processor. This octa-core powerhouse operates at 3.20 GHz, featuring a Socket 3647, 8 MB L2 cache, and an impressive 24.75 MB L3 cache. With 64-bit processing and a 3.70 GHz overclocking speed, it delivers exceptional performance for demanding applications.
UCS-CPU-E5-2440 Overview
Experience enhanced performance with the UCS-CPU-E5-2440, a Cisco 2.40GHz processor featuring a 7.20GT/s QPI and a robust 15MB L3 Cache. This Intel Xeon E5-2440 6 Core Processor is the ideal upgrade for your server needs.
UCS-CPU-E52695DC Overview
The Intel® Xeon® E5-2600 v3 processor family is engineered to address both current and future demands in compute, storage, and networking. It boasts enhanced performance through Intel® Advanced Vector Extensions 2 (Intel® AVX2) for diverse data center workloads, alongside built-in intelligent power management for improved energy efficiency and frequency optimization.
UCSC-MLOM-C40Q-03 Overview
This advanced network adapter supports 40 Gigabit Ethernet and Fiber Channel over Ethernet (FCoE). Featuring Cisco’s next-generation converged network adapter (CNA) technology, it provides a robust feature set, ensuring investment protection for future software enhancements.
UCS-CPU-E52695DC Cisco Systems 2.30 GHz E5-2695 V3 Processor
UCS-CPU-E52695DC Overview
The Intel® Xeon® E5-2600 v3 processor family is engineered to address both current and future demands in compute, storage, and networking. It boasts enhanced performance through Intel® Advanced Vector Extensions 2 (Intel® AVX2) for diverse data center workloads, alongside built-in intelligent power management for improved energy efficiency and frequency optimization.
UCS-CPU-E52695DC Technical Specifications
Cisco Systems 2.30 GHz E5-2695 V3 120W
General Information
Product Name: 2.30 GHz E5-2695 V3 120W 14-Core 35MB Cache 2133MHz
Manufacturer Part Number: UCS-CPU-E52695DC
Product Line: Xeon
Product Series: E5-2600 v3
Product Model: E5-2695v3
Product Type: Processor Upgrade for Cisco UCS
Technical Information
Processor Manufacturer: Intel
Processor Core: Tetradeca-core (14 Core)
Base Clock Speed: 2.30 GHz
Overclocking Speed: 3.30 GHz
QuickPath Interconnect: 9.60 GT/s
Direct Media Interface: 5 GT/s
L2 Cache: 3.50 MB
L3 Cache: 35 MB
64-bit Processing: Yes
Process Technology: 22 nm
Processor Socket: Socket LGA 2011-v3
Environmental Conditions
Thermal Specification: 180.7°F (82.6°C)
Power Description
Input Voltage: 1.3 V DC
Thermal Design Power: 120 W
