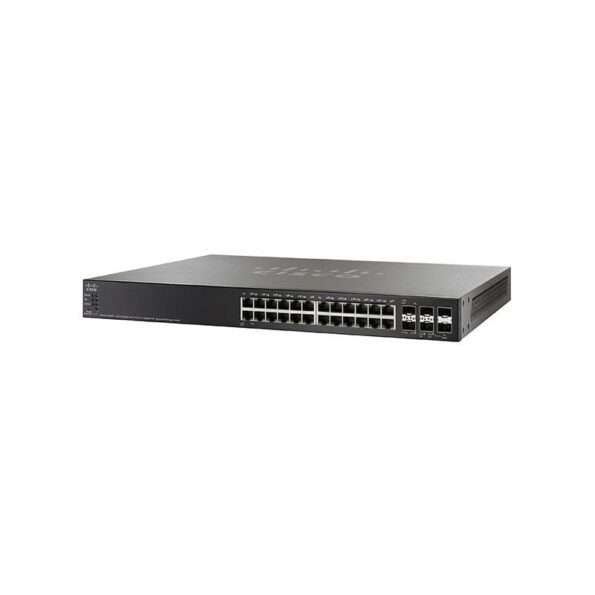

SRW224G4-K9-AR Cisco SF300-24 – 24-Port Managed Switch
SRW224G4-K9-AR Overview
The Cisco 300 series switch is engineered to deliver an exceptional mix of affordability, performance, and features tailored for small businesses. This extensive range of cost-effective managed switches lays a robust foundation for your business networking needs.
266.00 AED
SRW224G4-K9-AR Technical Specifications
Cisco Small Business SF300-24 – 24-Port Managed Switch
Cable
Connectivity Details Type: Serial cable
Cable Details
Form Factor: External
Included Qty: 1
Dimensions & Weight
Depth: 10.1 in
Height: 1.8 in
Weight: 6.83 lbs
Width: 17.3 in
Environmental Parameters
Operating Humidity Range: 10 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Flash Memory
Installed Size: 16 MB
Type: Flash
Header
Brand: Cisco
Compatibility: Mac, PC
Manufacturer: Cisco Systems
Model: SF300-24
Packaged Quantity: 1
Product Line: Cisco Small Business
Interface Provided
Comments: Management
Connector Type: DB-9 (Qty: 1, Type: Console)
Connector Type: SFP (mini-GBIC) (Qty: 2)
Connector Type: RJ-45 (Qty: 24, Type: 100Base-TX)
Connector Type: 1000Base-T (Qty: 4)
Miscellaneous
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Compliant Standards: CSA 22.2 No. 60950, FCC Part 15 A, UL 60950
Encryption Algorithm: SSL
Height (Rack Units): 1
Rack Mounting Kit: Included
Ports
Qty: 24 (Type: 10/100)
Ports (2nd): Qty: 2 (Type: Combo Gigabit SFP)
Ports (3rd): Qty: 2 (Type: 10/100/1000)
Power Device
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Type: Internal power supply
RAM
Installed Size: 128 MB
Networking
Advanced Switching: Layer 3
Auxiliary Network Ports: 2×10/100/1000Base-T/SFP (uplink), 2×10/100/1000Base-T
Cabling Type: Ethernet 100Base-TX, Ethernet 10Base-T
Communication Mode: Full-duplex, Half-duplex
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Connectivity Technology: Wired
Features: Access Control List (ACL) support, BOOTP support, Broadcast Storm Control, DHCP support, DiffServ support, DoS attack prevention, Firmware upgradable, IGMP snooping, IPv6 support, Jumbo Frames support, Layer 2 and Layer 3 switching, MLD snooping, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Unicast Storm Control, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor: Desktop
MAC Address Table Size: 8K entries
Manageable: Yes
Ports Qty: 24
Remote Management Protocol: CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol: Static IPv4 routing
Status Indicators: Link/activity, Port transmission speed, System
Subcategory: Network hubs and switches
Subtype: Fast Ethernet
Switching Protocol: Ethernet
Type: Switch
