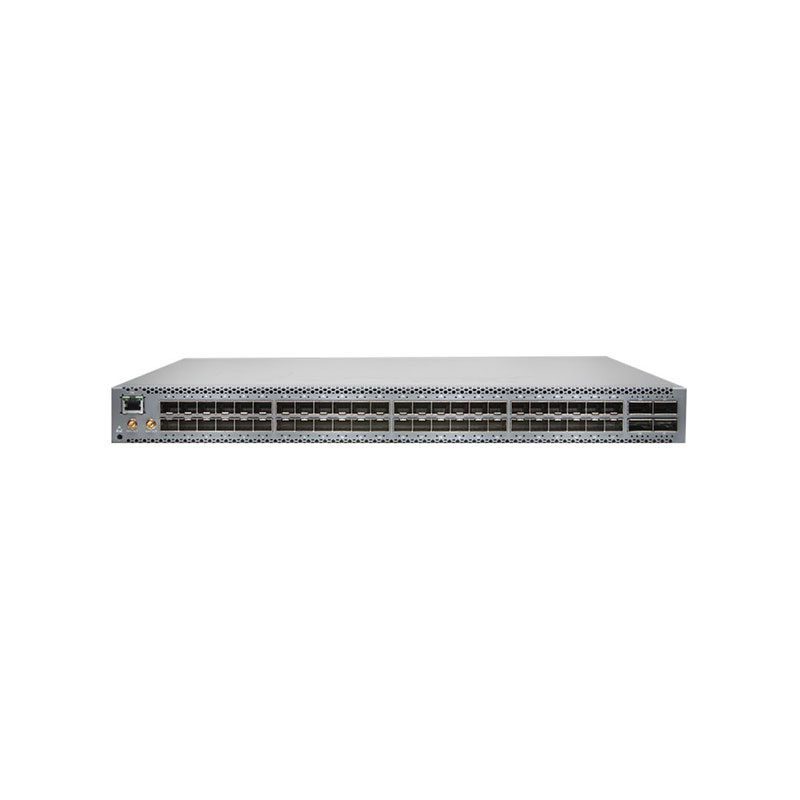

QFX5110-48S-D-AFO2 Juniper QFX5110-48S Ethernet Switch – High Performance
QFX5110-48S-D-AFO2 Overview
The QFX5110 access and aggregation switches provide low latency and advanced Layer 2 and Layer 3 capabilities. With support for VXLAN overlay deployments and 100GbE uplinks, these switches are among the most agile solutions available in the market.
15,576.00 AED
QFX5110-48S-D-AFO2 Technical Specifications
Juniper QFX5110-48S Ethernet Switch
General Information
Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: QFX5110-48S-D-AFO2
Product Series: QFX5110
Product Model: QFX5110-48S
Product Name: QFX5110-48S Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Interfaces/Ports:
Modular: Yes
Port/Expansion Slot Details: 48 x 10 Gigabit Ethernet, 4 x 100 Gigabit Ethernet
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 10 Gigabit, 40 Gigabit, 100 Gigabit
Network Technology: 10GBase-X, 40GBase-X, 100GBase-X
I/O Expansions
Total Expansion Slots: 52
Expansion Slot Type: SFP+, QSFP+, QSFP28
SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Management & Protocols:
Manageable: Yes
Power Description:
Power Source: DC
Redundant Power Supply Supported: Yes
Power Consumption: 300 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.4″
Depth: 20.5″
Weight: Approximately 23 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6, China RoHS, REACH, WEEE, 80 Plus Silver
