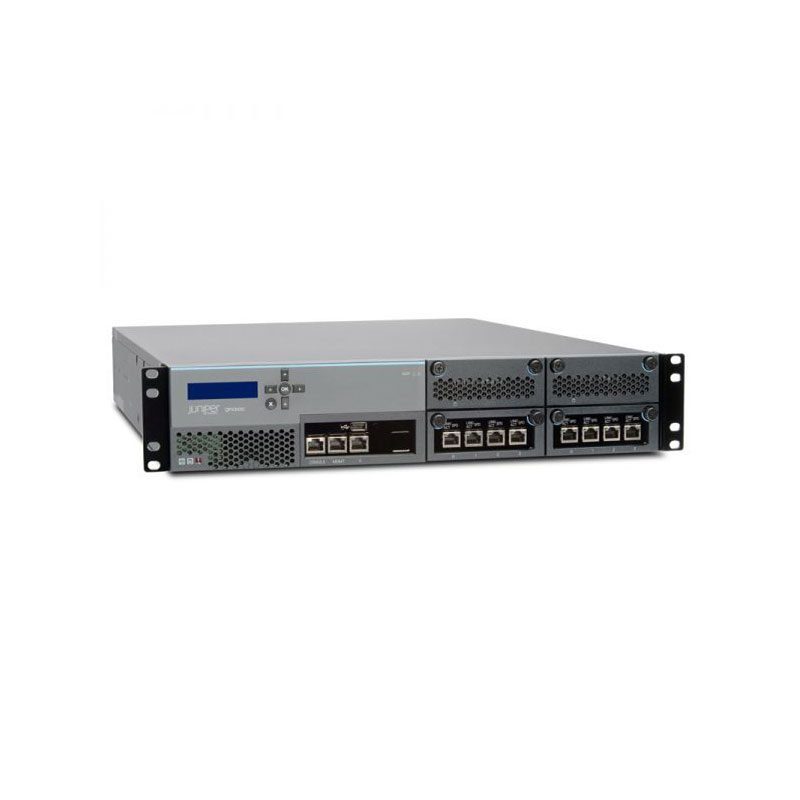

QFX3100-GBE-ACR Juniper Networks QFX3100 Router Rack Unit
QFX3100-GBE-ACR Overview
The QFX3100 Director interfaces directly with QFabric Node and Interconnect devices, offering a comprehensive view of the QFabric architecture. This scalable solution supports thousands of server-facing ports. When deployed in clusters, it provides network operators with centralized visibility, control, and management, simplifying the complexities of modern data center networks and reducing operational costs.
17,715.00 AED
QFX3100-GBE-ACR Technical Specifications
Juniper Networks QFX3100 Router Rack Mountable
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks
Model: QFX3100
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Built-in Devices: RAID controller
Installed Devices / Modules Qty: 4
Supported Devices / Modules Qty: 4
Processor
Installed Qty: 2
Manufacturer: Intel
Clock Speed: 2.1 GHz
RAM
Installed Size: 36 GB
Hard Drive
Capacity: 4 TB
Networking
Type: Router
Form Factor: Rack-mountable
Connectivity Technology: Wired
Data Link Protocol: Gigabit Ethernet
Remote Management Protocol: SNMP 1, SNMP 2, SSH, CLI, SNMP 3
Status Indicators: LCD display
Key Features: USB port
Features: Modular design, Redundant hot swappable fans, Front to back airflow
Expansion Slots
Expansion Slots: 2 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces: USB: 1 x 4 pin USB Type A, Management: 2 x Ethernet – RJ-45, 8 x 1000Base-T – RJ-45, Management: 1 x console
Power Device
Type: Internal power supply
Hot-Plug: Hot-plug
Power Redundancy: Yes
Installed Qty: 2
Max Supported Qty: 2
Power Provided: 560 watt
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 hertz
Power Consumption Operational: 476 watt
System Requirements
OS Required: JUNOS
Miscellaneous
Rack Mounting Kit: Included
Height (Rack Units): 2
MTBF: 96,125 Hours
Compliant Standards: CAN/CSA C22.2 No. 60950-1, EN 60825-1, RoHS 5/6, EN 60950-1, FCC CFR47 Part 15, EN55024, WEEE, UL 60950-1 Second Edition, EN300-386, IEC 60950-1, REACH, CISPR 22, VCCI Class A, EN55022 Class A, ErP Ready, BSMI CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width: 17.5 inch
Depth: 23.8 inch
Height: 3.5 inch
Weight: 41.2 lbs
Environmental Parameters
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Humidity Range Operating: 8 – 90% (non-condensing)
