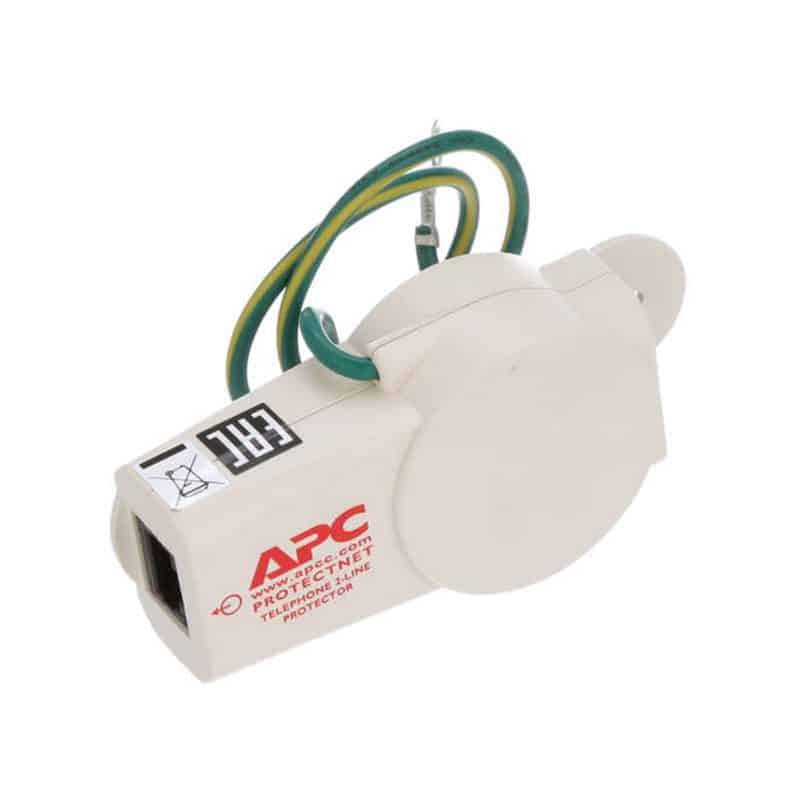

PTEL2 APC ProtectNet Analog Surge Protector – Standalone

PTEL2 Technical Specifications

APC ProtectNet Standalone Surge Protector for Analog

Lead time: Usually in Stock
Main Features:
– Number of cables: 1
– Provided equipment: User manual
Physical Specifications:
– Colour: Beige
– Height: 10.3 cm
– Width: 4.7 cm
– Depth: 2.8 cm
– Net weight: 0.06 kg
– Mounting preference: No preference
– Mounting mode: Not rack-mountable
Output Details:
– Number of power socket outlets: 0
Conformance Standards:
– Product certifications: UL listed
– Standards: UL 497A
Environmental Conditions:
– Ambient air temperature for operation: -15…45 °C
– Relative humidity: 0…95 %
– Ambient air temperature for storage: -15…45 °C
– Storage Relative Humidity: 0…95 %
Surge Protection and Filtering:
– Data line protected: 3-6 RJ45
– Response time: 1 ns common mode
– Peak current: 0.15 kA common mode, 0.2 kA normal mode
Packing Units:
– Unit Type of Package 1: PCE
– Number of Units in Package 1: 1
– Package 1 Height: 10.4 cm
– Package 1 Width: 9 cm
– Package 1 Length: 2.9 cm
– Package 1 Weight: 0.14 kg
– Number of Units in Package 2: 144
– Package 2 Weight: 8.16 kg
– Number of Units in Package 3: 750
– SCC14: 10731304000430
Contractual Warranty:
– Warranty: 10 years repair or replace.
