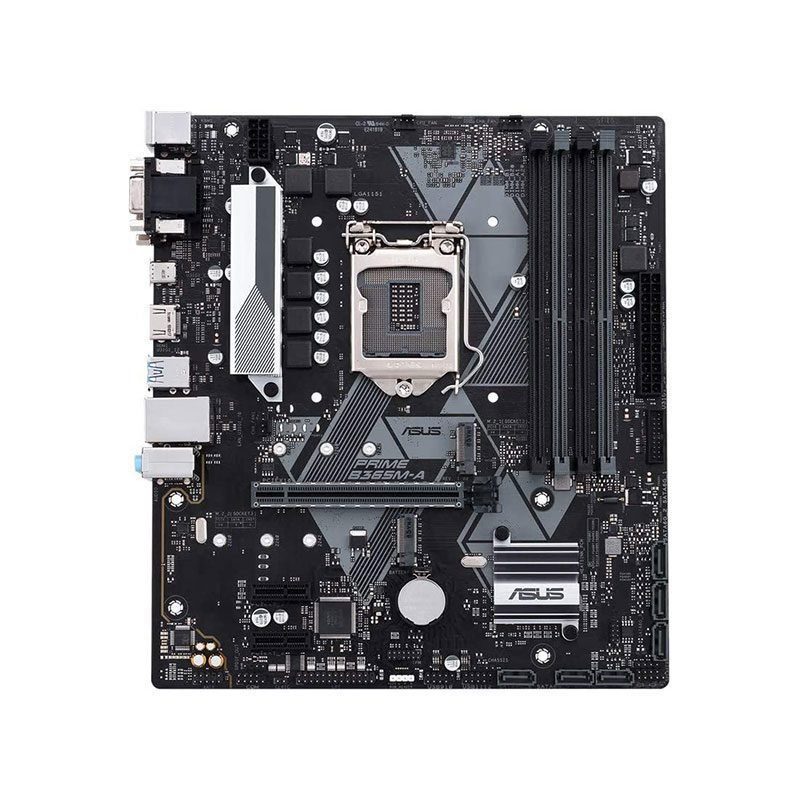

PRIME B365M-A ASUS Motherboard for 9th/8th Gen Intel Processors

PRIME B365M-A Technical Specifications

ASUS Motherboard Supporting 9th/8th Gen Intel Processors

Model
Brand: ASUS
Model: PRIME B365M-A
Supported CPU
CPU Socket Type: LGA 1151 (300 Series)
CPU Type: Compatible with Intel’s 9th/8th Generation Core i7/i5/i3, Pentium, and Celeron processors. Note: Not compatible with older LGA 1151 CPUs.
Supported Technologies: Intel Turbo Boost Technology 2.0 (dependent on CPU type).
Chipsets
Chipset: Intel B365
Onboard Video
Integrated Video Chipset: Intel HD Graphics with multi-VGA output (HDMI/DVI-D/D-Sub).
Supports HDMI 1.4b (max resolution 4096 x 2160 @ 30 Hz), DVI (max resolution 1920 x 1200 @ 60 Hz), and D-sub (max resolution 1920 x 1200 @ 60 Hz).
Maximum shared memory: 1024MB (for iGPU).
Memory
Memory Slots: 4x288pin
Memory Standard: DDR4 2666/2400/2133 MHz (Non-ECC, Un-buffered). Maximum supported memory: 64GB. Dual Channel supported.
Expansion Slots
PCI Express 3.0 x16: 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0/2.0 x1.
Storage Devices
SATA 6Gb/s: 6 ports, M.2: 2 sockets supporting SATA & PCIe 3.0 x4 mode.
Audio
Audio Chipset: Realtek ALC887 with 8-channel audio output.
LAN
Chipset: Realtek RTL8111H, Max Speed: 10/100/1000Mbps.
Rear Panel Ports
Includes various ports for connectivity, including USB 3.1 Gen 1 Type-C and HDMI.
