ONS-XC-10G-EP48.5 Cisco Edge Performance XFP Module
ONS-XC-10G-EP48.5 Overview
The XFP transceiver module is a sophisticated bidirectional device that integrates both a transmitter and a receiver within a single compact package. It features a 30-pin surface mount connector for the electrical interface and a duplex LC connector for the optical interface, ensuring efficient connectivity.
6,690.00 AED
ONS-XC-10G-EP48.5 Technical Specifications
Cisco Edge Performance XFP Transceiver Module
Connectors
Left Connector Type: LC single-mode
Environmental Parameters
Max Operating Temperature: 158 °F
Min Operating Temperature: 32 °F
Header
Brand: Cisco Transceiver
Compatibility: PC
Manufacturer: CISCO DS HARDWARE DIRECT
Model: Edge Performance
Packaged Quantity: 1
Product Line: Cisco ONS
Interface Provided
Connector Quantity: 2
Connector Type: LC single-mode
Qty: 1
Type: DWDM
Line Properties
Line Rate: OC-192/STM-64
Miscellaneous
MTBF: 2,711,000 hours
Networking
Supported Fiber Mode: Single-mode (SMF)
Cabling Type: DWDM
Connectivity Technology: Wired
Data Link Protocol: 10 Gigabit Ethernet
Data Transfer Rate: 10GBase
Form Factor: Plug-in module
Max Transfer Distance: 31.1 miles
Optical Wave Length: 1548.51 nm
Type: XFP transceiver module
Related Products

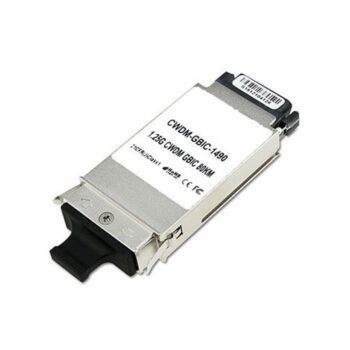

CWDM-GBIC-1490 Overview
