MX104-AC – Juniper Networks MX104-AC Router Chassis
Juniper MX104-AC

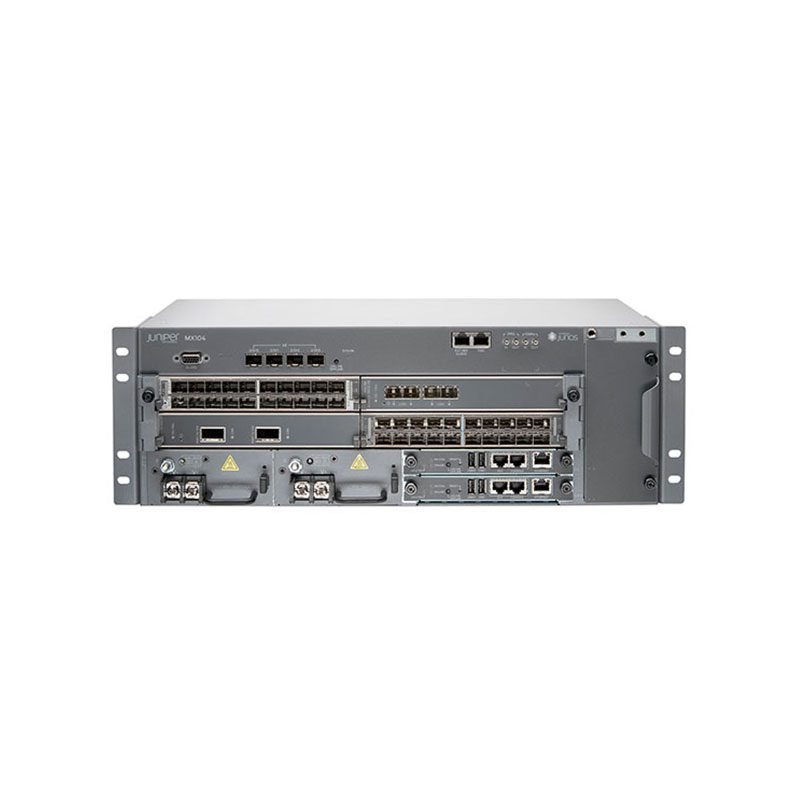

The Juniper Networks MX104-AC chassis router is designed for high availability and resilience. It features four Modular Interface Card (MIC) slots and four built-in redundant fixed 10GbE small form-factor pluggable (XFP) ports, ensuring flexible connectivity. The system includes dual power supplies, a fan tray with filter, and is optimized for maximum throughput of 80 Gbps.
10,971.00 AED
MX104-AC Technical Specifications
Juniper Networks MX104-AC Chassis Router
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks MX-series
Model: MX104
Packaged Quantity: 1
Chassis
Airflow Direction: Side to side airflow
Supported Devices / Modules Qty: 6
RAM
Technology: DDR3 SDRAM
Installed Size: 4 GB
Networking
Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity Technology: Wired
Network / Transport Protocol: DHCP, IPSec
Remote Management Protocol: CLI, SNMP 1, SNMP 2, SNMP 3
Key Features: USB port, VPN support
Features: Fan tray, High Availability, In-Service Software Upgrade (ISSU), NAT support, Non-Stop Routing (NSR), NTP time synchronization, Precision Time Protocol (PTP), Quality of Service (QoS), VPN support
Compliant Standards: IEEE 1588-2008
Expansion Slots
Expansion Slots: 2 Services and Routing Engine (SRE), 4 (total) / 4 (free) x Modular Interface Card (MIC)
Interface Provided
Interfaces: 4 x 10Gb Ethernet – SFP+, Alarm: 4 x input, Alarm: 4 x output, Management: 1 x console, Management: 1 x RS-232, USB: 2 x
Power Device
Type: Internal power supply
Hot-Plug: Yes
Max Supported Qty: 2
Nominal Voltage: AC 100/230 V
Frequency Required: 50/60 hertz
System Requirements
OS Required: JUNOS
Miscellaneous
Color Category: Gray
Height (Rack Units): 3.5
Compliant Standards: BSMI CNS 13438, CAN/CSA-C22.2 No. 60950-1, EMI, EN 300 386 V1.3.3, EN 55022 Class A, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN55024:1998 + A1 + A2, ETS 300 753, ETSI 300 019, FCC Part 15 A, GR-1089-CORE, GR-63-CORE, IEC 60950-1, NCC, NEBS level 3, UL 60950-1 Second Edition, VCCI Class A
