MX10-T-DC Juniper Networks MX10 Edge Router
MX10-T-DC Overview
The MX10 3D universal edge router offers a compact, cost-efficient solution ideal for small-scale environments. Designed for both enterprise and service provider networks, it provides the full versatility and capabilities of the MX series while accommodating space and power limitations.
45,299.00 AED
MX10-T-DC Technical Specifications
Juniper Networks MX-series MX10 Router Rack Mountable
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks MX-series
Model: MX10
Packaged Quantity: 1
Chassis
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 2
Modem
Type: None
Performance
Performance: Switching capacity of 40 Gbps
Networking
Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity Technology: Wired
Routing Protocol: GRE
Remote Management Protocol: HTTP, SNMP 2, SNMP 3
Key Features: VPN support
Features: Manageable, Modular design, MPLS support, Quality of Service (QoS), VPN support
Expansion Slots
Expansion Slots: 2 (total) / 2 (free) x Modular Interface Card (MIC), 4 (total) / 4 (free) x XFP
Interface Provided
Interfaces: 1 x auxiliary – RJ-45, 1 x console, 1 x Ethernet – RJ-45, 1 x USB – 4 pin USB Type A, Synchronization: 2 x RJ-45
Power Device
Max Supported Qty: 2
Nominal Voltage: DC -40 -72 V
Miscellaneous
Compliant Standards: AS/NZS 3548 Class A, CSA C22.2 No. 60950-00, EN 60825-1, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN55022 Class A, FCC Part 15 A, NEBS, UL 1950 Third Edition, VCCI Class A ITE
Dimensions & Weight
Width: 6.9 inch
Depth: 23.5 inch
Height: 3.5 inch
Environmental Parameters
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Humidity Range Operating: 5 – 90% (non-condensing)
Related Products

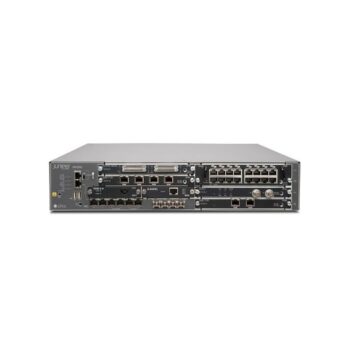

SRX550-645DP-M-TAA Overview
The Juniper SRX550 Services Gateway features 4G DRAM, 8G CF storage, and a single DC PSU, designed for TAA compliance and robust performance.
JNP6360-CHAS Overview
The JNP6360-CHAS serves as a reliable spare chassis for the ACX6360 Universal Metro Router, designed specifically for efficient performance and robust connectivity solutions.
MX80BASE-P Overview
The Juniper Networks MX80 3D Universal Edge router is the most compact model in the MX series. Standing at just 2 RU high with front-accessible redundant power supplies and fans, this router is ideal for environments with stringent space and power requirements. It features four built-in 10 Gigabit Ethernet ports and supports various Modular Interface Cards (MICs) for enhanced flexibility.

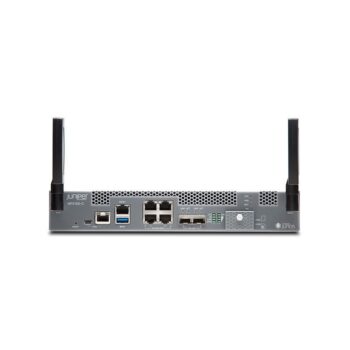

NFX150-C-S1E-AE Overview
The Juniper NFX150 Network Services Platform offers a secure and automated solution for customer premises equipment (CPE). This software-driven platform provides on-demand virtualized network and security services. Utilizing Network Functions Virtualization (NFV) and the Juniper Cloud CPE solution, it allows service providers to deploy multiple secure and high-performance virtualized network functions (VNFs) on a single device, ideal for small to medium-sized enterprises.
RBD22UGS-5HPacD2HnD-15S Overview
The MikroTik Router delivers a powerful combination of Gigabit Ethernet and wireless networking. With dual-band Wi-Fi support, it ensures high-speed wireless connectivity. Running on advanced RouterOS, it provides extensive routing, security, and management features, making it an excellent choice for small to medium-sized businesses seeking reliable network performance in a compact device.
MX204-P-BASE Overview
The MX204 is a cloud-grade SDN-ready router designed for ultra-high density and throughput in a compact, power-efficient format. It meets the evolving needs of service providers and operators by delivering 800 Gbps throughput, accommodating high-density interfaces such as 10GbE, 40GbE, and 100GbE—all within a single rack unit. The router includes essential features for automation and telemetry, paving the way for the future Self-Driving Network.
NFX350-S2-AC Overview
MX150-TAA Overview
The MX150-TAA from Juniper Networks is a rack-mountable MX-series router designed for high-performance networking. This router offers robust capabilities suitable for various applications, ensuring reliable connectivity and efficient data handling.

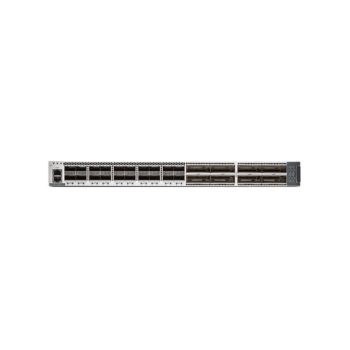

ACX6360-OR-AC Overview
