MX10-T-DC Juniper Networks MX10 Edge Router
MX10-T-DC Overview
The MX10 3D universal edge router offers a compact, cost-efficient solution ideal for small-scale environments. Designed for both enterprise and service provider networks, it provides the full versatility and capabilities of the MX series while accommodating space and power limitations.
45,299.00 AED
MX10-T-DC Technical Specifications
Juniper Networks MX-series MX10 Router Rack Mountable
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks MX-series
Model: MX10
Packaged Quantity: 1
Chassis
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 2
Modem
Type: None
Performance
Performance: Switching capacity of 40 Gbps
Networking
Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity Technology: Wired
Routing Protocol: GRE
Remote Management Protocol: HTTP, SNMP 2, SNMP 3
Key Features: VPN support
Features: Manageable, Modular design, MPLS support, Quality of Service (QoS), VPN support
Expansion Slots
Expansion Slots: 2 (total) / 2 (free) x Modular Interface Card (MIC), 4 (total) / 4 (free) x XFP
Interface Provided
Interfaces: 1 x auxiliary – RJ-45, 1 x console, 1 x Ethernet – RJ-45, 1 x USB – 4 pin USB Type A, Synchronization: 2 x RJ-45
Power Device
Max Supported Qty: 2
Nominal Voltage: DC -40 -72 V
Miscellaneous
Compliant Standards: AS/NZS 3548 Class A, CSA C22.2 No. 60950-00, EN 60825-1, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN55022 Class A, FCC Part 15 A, NEBS, UL 1950 Third Edition, VCCI Class A ITE
Dimensions & Weight
Width: 6.9 inch
Depth: 23.5 inch
Height: 3.5 inch
Environmental Parameters
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Humidity Range Operating: 5 – 90% (non-condensing)
Related Products
SRX345 Overview
The Juniper Networks SRX300 series provides a robust solution for networking and security, adapting to the evolving demands of cloud-based enterprise infrastructures. Whether implementing new applications, connecting to the cloud, or enhancing operational efficiency, the SRX300 series empowers organizations to achieve their goals with scalable, manageable, and secure connectivity along with advanced threat mitigation features.
407-BBWK Overview
The Dell 25GE 850NM Short Wavelength SFP+ Transceiver is a crucial networking component that enables seamless data transfer between systems. This dual-function device acts as both a transmitter and receiver, commonly utilized in networking environments. Operating at a short wavelength of 850 nanometers, it efficiently transmits data over short distances and is designed in a compact SFP+ form factor for easy installation.
RE-S-X6-128G-S-BB Overview
The Routing Engine is essential for maintaining routing tables, managing routing protocols, and overseeing the JUNOS software processes that govern the router’s interfaces, chassis components, system management, and user access.
MX240BASE-DC Overview
Experience the power of the Juniper MX240 Ethernet Services Router, designed for high-performance networking and reliability.
EX-XRE200-AC Overview
The XRE200 Router features a front-panel LCD for easy device setup and configuration rollbacks, along with switch alarm reporting and LED status indicators. It also includes an RJ-45 console port and a 10/100/1000BASE-T Ethernet port for efficient out-of-band management.

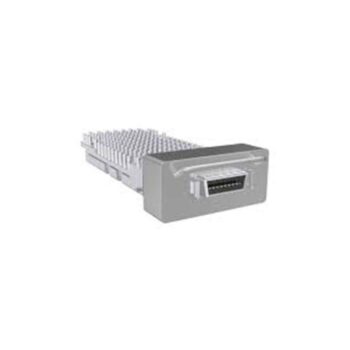

J8440A Overview
