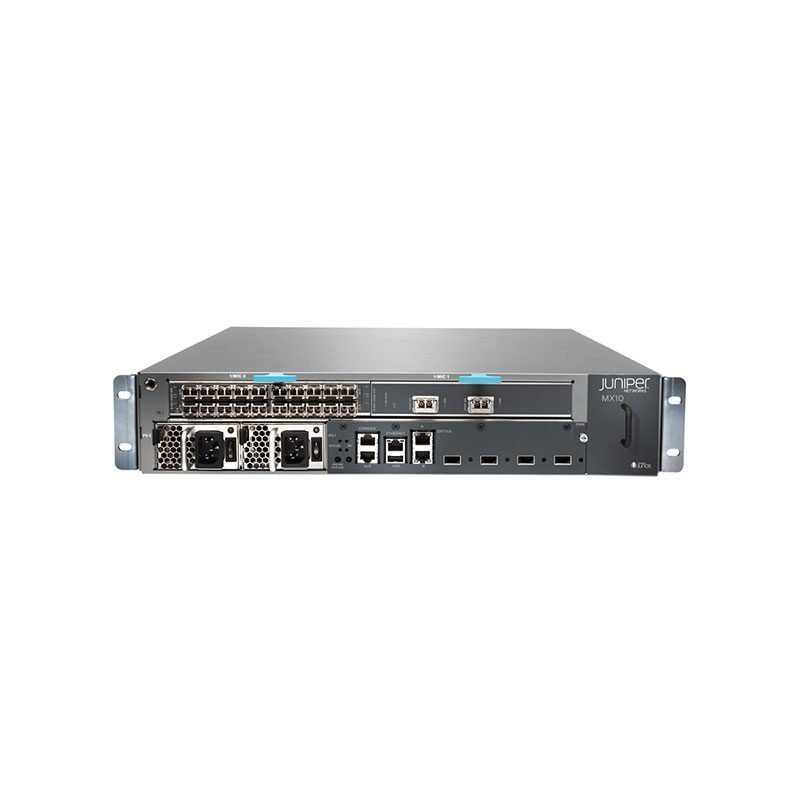

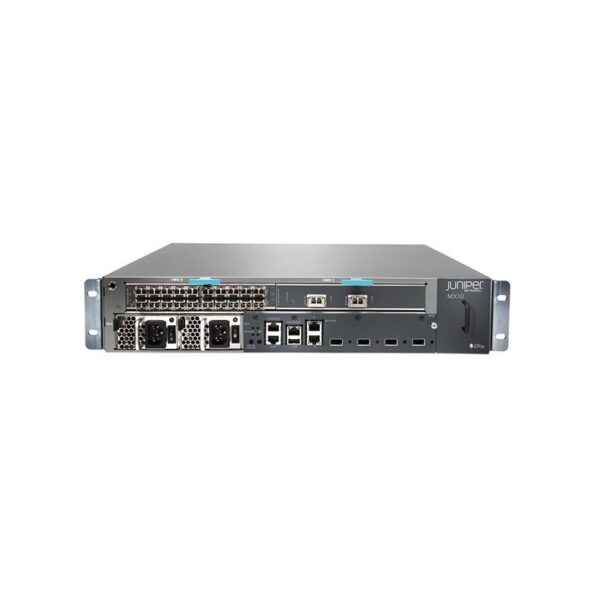

MX10-T-DC Juniper Networks MX10 Edge Router
MX10-T-DC Overview
The MX10 3D universal edge router offers a compact, cost-efficient solution ideal for small-scale environments. Designed for both enterprise and service provider networks, it provides the full versatility and capabilities of the MX series while accommodating space and power limitations.
45,299.00 AED
MX10-T-DC Technical Specifications
Juniper Networks MX-series MX10 Router Rack Mountable
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks MX-series
Model: MX10
Packaged Quantity: 1
Chassis
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 2
Modem
Type: None
Performance
Performance: Switching capacity of 40 Gbps
Networking
Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity Technology: Wired
Routing Protocol: GRE
Remote Management Protocol: HTTP, SNMP 2, SNMP 3
Key Features: VPN support
Features: Manageable, Modular design, MPLS support, Quality of Service (QoS), VPN support
Expansion Slots
Expansion Slots: 2 (total) / 2 (free) x Modular Interface Card (MIC), 4 (total) / 4 (free) x XFP
Interface Provided
Interfaces: 1 x auxiliary – RJ-45, 1 x console, 1 x Ethernet – RJ-45, 1 x USB – 4 pin USB Type A, Synchronization: 2 x RJ-45
Power Device
Max Supported Qty: 2
Nominal Voltage: DC -40 -72 V
Miscellaneous
Compliant Standards: AS/NZS 3548 Class A, CSA C22.2 No. 60950-00, EN 60825-1, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN55022 Class A, FCC Part 15 A, NEBS, UL 1950 Third Edition, VCCI Class A ITE
Dimensions & Weight
Width: 6.9 inch
Depth: 23.5 inch
Height: 3.5 inch
Environmental Parameters
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Humidity Range Operating: 5 – 90% (non-condensing)
