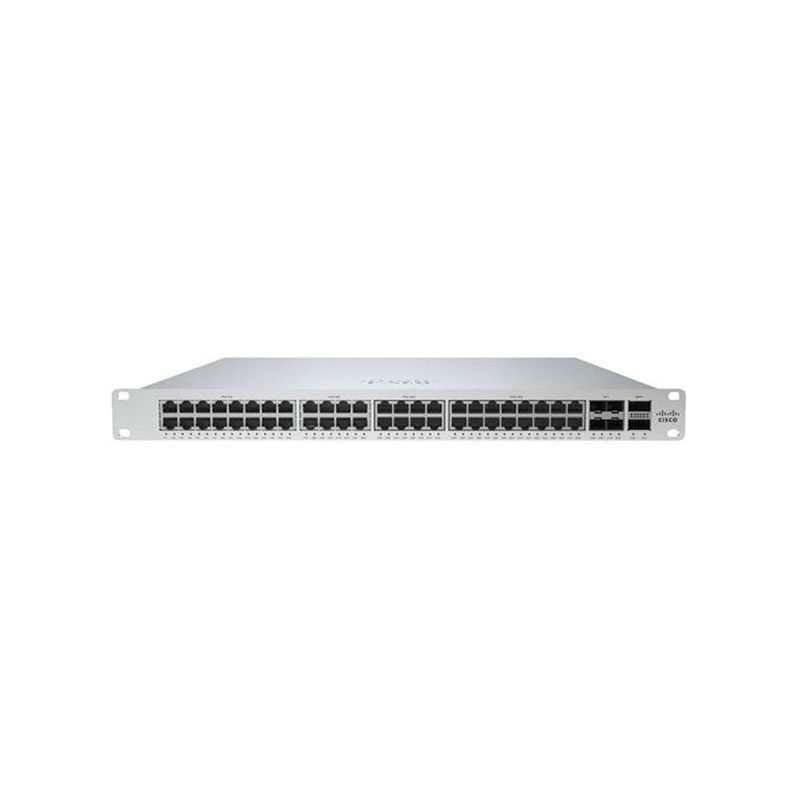

MS355-48X-HW Cisco Meraki Cloud-Managed 48-Port Switch
MS355-48X-HW Overview
The Cisco Meraki MS355 series delivers robust 10G multi-gigabit (mGig) access switching tailored for high-demand enterprise and campus settings. This switch series boasts an impressive mGig port density suitable for 802.11ax wireless access points, servers, and workstations. With support for 40G or 10G uplinks, physical stacking, and up to 60W UPoE port power, it ensures seamless network management and visibility.
15,699.00 AED
MS355-48X-HW Technical Specifications
Cisco Meraki Cloud Managed MS355-48X 48-Port Switch
Environmental Parameters
Operating Humidity Range: 5 – 95% (non-condensing)
Max Operating Temperature: 113 °F
Min Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Manufacturer: CISCO DS HARDWARE DIRECT
Model: MS355-48X
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Product Series: MS355
Interface Provided
Stacking Comments: Yes
Connector Type: QSFP28
Type: 100Gbit LAN
Uplink Comments: Yes
Connector Types & Quantities: 4 SFP+ (10Gbit LAN), 16 RJ-45 (100/1000/2.5G/5G/10GBase-T), 2 QSFP+ (40Gbit LAN), 32 (1000Base-T)
Miscellaneous
Authentication Method: RADIUS
Color Category: Silver
Compliant Standards: C-Tick, CSA, IC, RoHS
Rack Mounting Kit: Included
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ab, 802.1D, 802.1p, 802.1Q, 802.1w, 802.1x, 802.3ad, 802.3af, 802.3at
Features: ARP support, Auto-negotiation, DHCP relay, Dynamic ARP Inspection, and more.
Form Factor: Desktop, Rack-mountable
Jumbo Frame Support: 9600 bytes
Manageable: Yes
Max Units in a Stack: 8
Ports Quantity: 48
Power Over Ethernet (PoE): UPOE
Remote Management Protocol: SNMP
Routing Protocols: IGMP, OSPFv2, Static IP routing, VRRP
Stackable: Yes
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Power Device
Frequency Required: 50/60 Hz
Hot-Plug: Yes
Nominal Voltage: AC 120/230 V
Power Consumption: 1793 Watt
Power Provided: 740 Watt
Type: Internal power supply
Dimensions & Weight
Depth: 20.3 in
Height: 1.7 in
Weight: 13.01 lbs
Width: 19.1 in
Capacity
Tagged VLANs: 4096
Performance: Forwarding rate: 405 Mpps, Switching capacity: 544 Gbps
Ports
Total Quantity: 48 Port Network Switch
1/2.5/5/10GBase-T: 16 Ports
1000Base-T: 32 Ports
10 Gigabit SFP+: 4 Ports
40 Gigabit QSFP: 2 Ports
