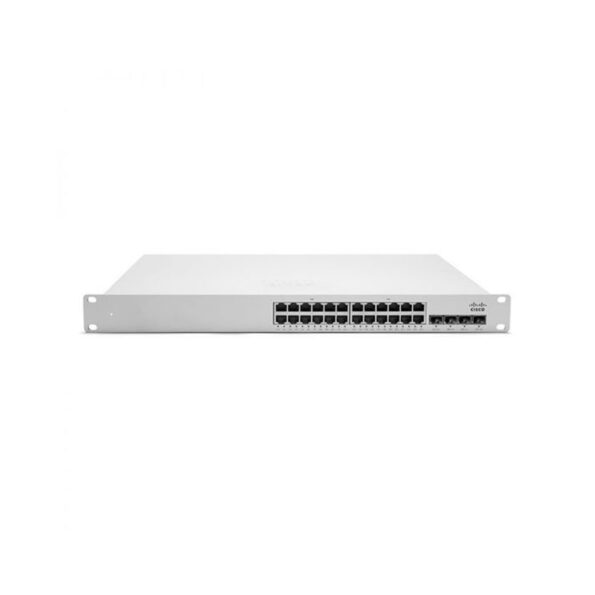

MS120-24-HW Cisco Meraki 24-Port Cloud Switch
MS120-24-HW Overview
Experience seamless Layer 2 access switching with the Cisco Meraki MS120 switches, perfect for branch and campus setups. These switches are effortlessly managed through a user-friendly cloud interface, eliminating the need for complex command lines. Simply plug in the switch to get started, without requiring intricate configuration files or direct physical access.
1,390.00 AED
MS120-24-HW Technical Specifications
Cisco Meraki Cloud Managed MS120-24 Switch 24 Port
Environmental Parameters
Operating Humidity: 5 – 95% (non-condensing)
Max Temperature: 104 °F
Min Temperature: 32 °F
Header
Brand: Cisco Meraki
Manufacturer: CISCO DS HARDWARE DIRECT
Model: MS120-24
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Ethernet Technology: Gigabit Ethernet
Product Series: MS120
Interface Provided
Connector Type: RJ-45
Ports: 24
Type: 1000Base-T
Connector Type: SFP
Ports: 4 SFP
Miscellaneous
Authentication Method: RADIUS
Color Category: White
Compliant Standards: CSA, FCC, IC, RCM, RoHS
Rack Units: 1
MTBF: 1,179,789 hours
Rack Mounting Kit: Included
Networking
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP)
Features: ACL support, Auto-negotiation, Auto-uplink, Broadcast Storm Control, Cisco Discovery Protocol, Crossover detection, DHCP client, DHCP snooping, E-mail alert, Firmware upgradable, IGMP snooping, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol support, Role-Based Access Control, SMS alert, VLAN support, Zero-touch provisioning.
Form Factor: Desktop, Rack-mountable
Jumbo Frame Support: 9578 bytes
Manageable: Yes
Ports Quantity: 24
Remote Management Protocol: SNMP
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Power Device
Frequency Required: 47 – 63 Hz
Nominal Voltage: AC 120/230 V
Type: Internal power supply
Dimensions & Weight
Depth: 9.8 in
Height: 1.7 in
Weight: 6.02 lbs
Width: 17.3 in
Capacity
Type: MAC forwarding entries
Value: 16000
Type: VLANs supported
Value: 4094
Performance
Type: Forwarding rate
Value: 41.67 Mpps
Type: Switching capacity
Value: 56 Gbps
Ports
Quantity: 24
Type: 10/100/1000
Ports (2nd)
Quantity: 4
Type: Gigabit SFP
