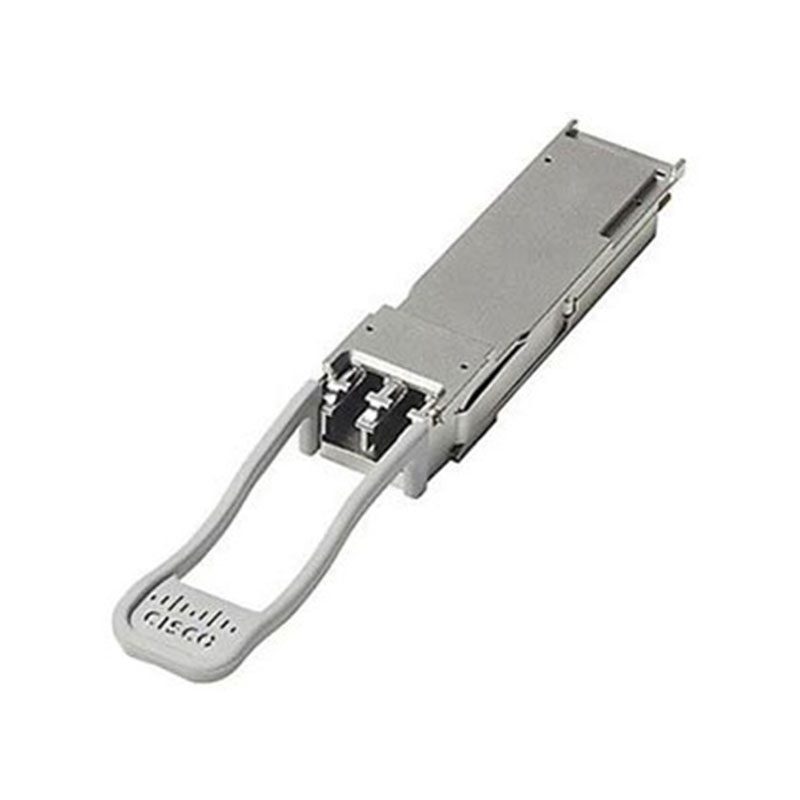

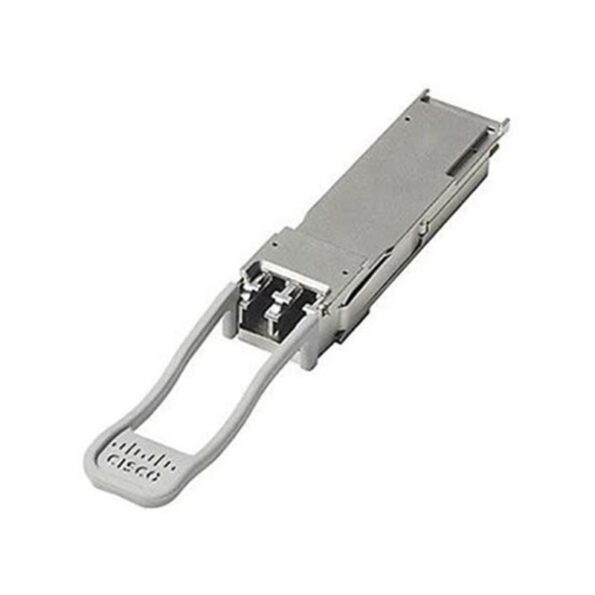

MA-QSFP-40G-CSR4 Cisco Meraki 40GbE QSFP Transceiver Module
MA-QSFP-40G-CSR4 Overview
The Cisco Meraki MA-QSFP-40G-CSR4 is a short-range 40GbE CSR4 fiber transceiver, designed for compatibility with MS425 products. This QSFP transceiver module supports 40 Gigabit LAN with 40GBASE-CSR4 technology, utilizing MPO multi-mode fiber for distances up to 1310 ft, making it ideal for Cloud Managed Ethernet Aggregation Switches like MS410, MS420, and MS425.
2,599.00 AED
MA-QSFP-40G-CSR4 Technical Specifications
Cisco Meraki QSFP Transceiver Module
Header
Brand: Cisco Meraki
Manufacturer: CISCO DS HARDWARE DIRECT
Packaged Quantity: 1
Product Line: Cisco Meraki
Type: Cisco Transceiver
Interface Provided
Connector Type: MPO multi-mode
Quantity: 1
Type: Ethernet 40GBASE-CSR4
Ethernet Technology: 40 Gigabit Ethernet
Miscellaneous
Color: Aqua
Color Category: Blue
Networking
Cabling Type: Ethernet 40GBASE-CSR4
Connectivity Technology: Wired
Data Link Protocol: 40 Gigabit Ethernet
Data Transfer Rate: 40 Gbps
Form Factor: Plug-in module
Maximum Transfer Distance: 1310 ft
Optical Wave Length: 850 nm
Type: QSFP transceiver module.
