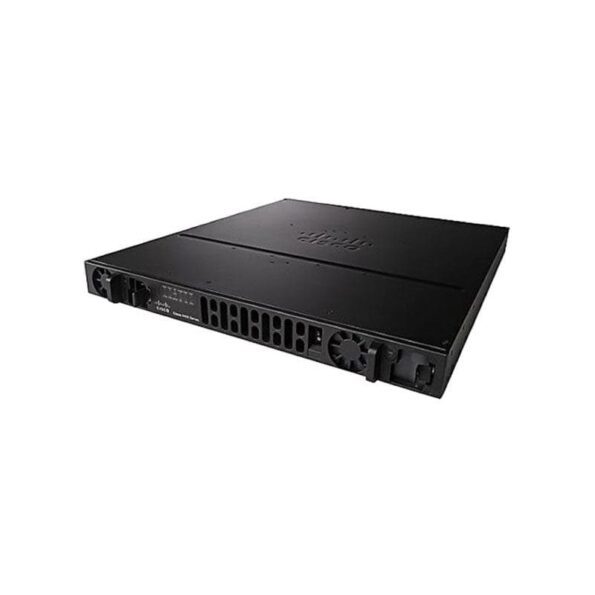

ISR4431-AXV/K9 – Cisco 4000 Series Integrated Router
ISR4431-AXV/K9 Overview
The Cisco 4431 Integrated Services Router features 3 Network Interface Module (NIM) slots and offers an aggregate throughput ranging from 500 Mbps to 1 Gbps. It simplifies router management with support for both data plane and control/services plane DDRM. The ISR4431-AXV/K9 is the Application Experience with Voice (AXV) Bundle.
21,545.00 AED
ISR4431-AXV/K9 Technical Specifications
Cisco ISR 4431 AXV Bundle with PVDM4-64 and APP.SEC.UC license, CUBE-25
Product Number: ISR4431-AXV/K9
Product Line: Cisco ISR
Product Model: ISR4431
Description: Cisco ISR 4431 AXV Bundle including PVDM4-64, APP.SEC.UC license, and CUBE-25.
Aggregate Throughput: 500 Mbps to 1 Gbps
Total Onboard WAN/LAN Ports: 4 (10/100/1000)
RJ-45 Ports: 4
SFP Ports: 4
Enhanced Service-Module Slots: 0
NIM Slots: 3
Onboard ISC Slot: 1
Default Memory (Data Plane): 2 GB
Maximum Memory (Data Plane): 2 GB
Default Memory (Control/Services Plane): 4 GB
Maximum Memory (Control/Services Plane): 16 GB
Default Flash Memory: 8 GB
Maximum Flash Memory: 32 GB
USB 2.0 Slots: 2
Power Supply Options: AC, DC, and PoE
Typical Power Consumption (Watts): 65
Maximum Power (Watts, without PoE): 250
Maximum Power (Watts, with PoE): 500 with redundancy.
