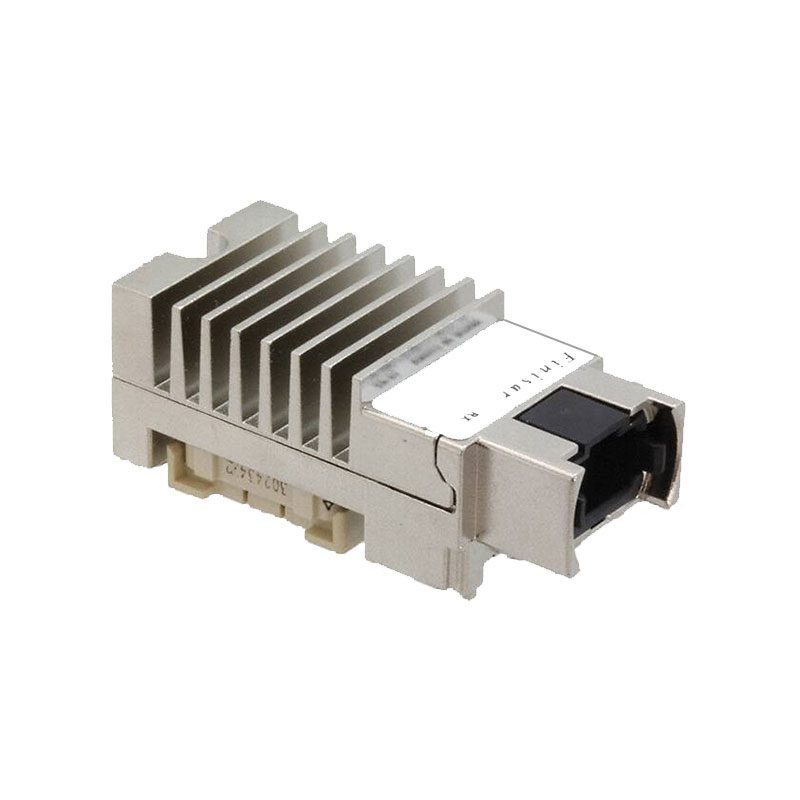

FTXD02SL1C Finisar SNAP12 Parallel Transmitter & Receiver Modules
FTXD02SL1C Overview
Finisar’s SNAP12 modules for transmission and reception are engineered for links reaching up to 32 Gigabits per second over multimode fiber. They comply with RoHS-6 regulations and are lead-free according to Directive 2002/95/EC1, as detailed in Finisar Application Note AN-20382.
313.00 AED
FTXD02SL1C Technical Specifications
SNAP12 Parallel Transmitter and Receiver Modules
These modules feature a 12-channel design for both transmitting and receiving. They utilize the SNAP12 form factor and support multirate operations ranging from 1Gb/s to 2.7Gb/s per channel for Fast Ethernet applications. The maximum link length achievable is 600 meters at a speed of 2.5Gb/s over OM3 Multimode Fiber (MMF). An unretimed electrical interface is provided, requiring a 3.3V power supply. The modules leverage reliable VCSEL array technology and are designed for commercial use, operating within a case temperature range of -5ºC to 75ºC. The connection is facilitated via a type MPO connector.
