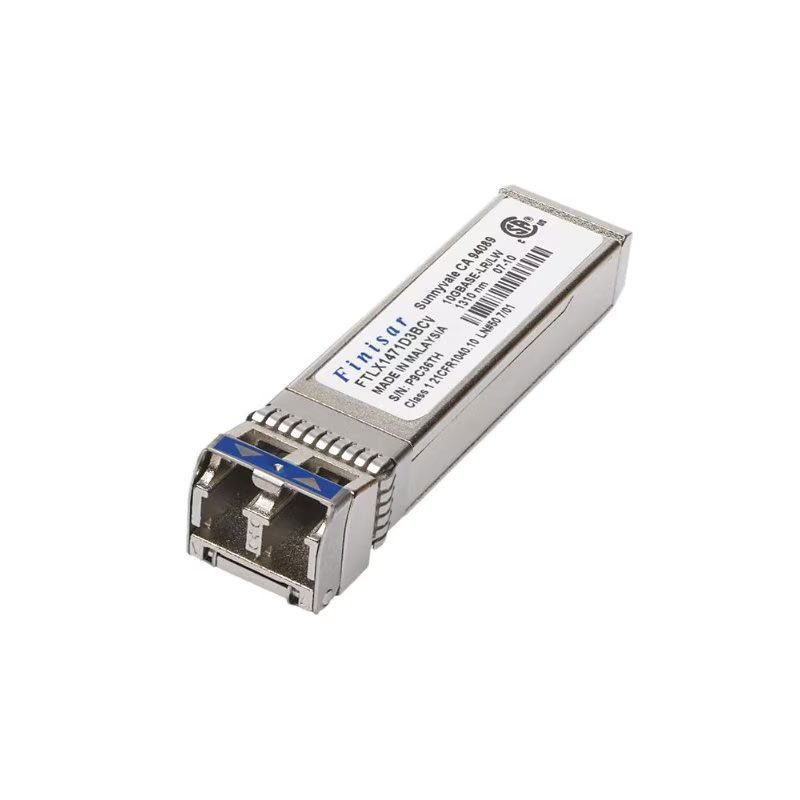

FTLX1475D3BCV Finisar 1310NM DFB 10GBASE-LR/LW Transceiver
FTLX1475D3BCV Overview
Finisar’s FTLX1475D3BCV transceiver operates at 10 Gb/s and is optimized for 1-Gigabit and 10-Gigabit Ethernet connections over single-mode fiber. This SFP+ module adheres to SFF-8431, SFF-8432, and IEEE 802.3ae standards, supporting both 10GBase-LR/LW and 10G Fiber Channel 1200-SM-LL-L protocols.
216.00 AED
FTLX1475D3BCV Technical Specifications
Finisar 1310NM DFB 10GBASE-LR/LW Transceiver
Brand: Finisar
Product Line: Finisar
Network & Communication
Cable Type: Ethernet 10GBase-LR, Ethernet 10GBase-LW, Ethernet 1000Base-LX
Compliant Standards: IEEE 802.3ae
Features: Digital Diagnostics
Form Factor: Plug-in module
Maximum Transfer Distance: 10 kilometers (6.2 miles)
Optical Wavelength: 1310 nm
Product Type: SFP+ transceiver module
Connectivity
Interface Provided: 1 x Ethernet 10GBase-LR/10GBase-LW/1000Base-LX – LC single-mode female x 2
Cables
Left Connector SD Type: LC single-mode
Technical Information
Max Operating Temperature: 70 degrees Celsius (158 degrees Fahrenheit)
Min Operating Temperature: -5 degrees Celsius (23 degrees Fahrenheit)
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 1.27 cm (0.5 inch)
Width: 1.27 cm (0.5 inch)
Depth: 5.58 cm (2.2 inch)
Certifications & Listings
Compliant Standards: RoHS 6/6, MSA SFF-8431, MSA SFF-8432, Directive 2011/65/EU, Lead-Free
ENERGY STAR Certified: No
