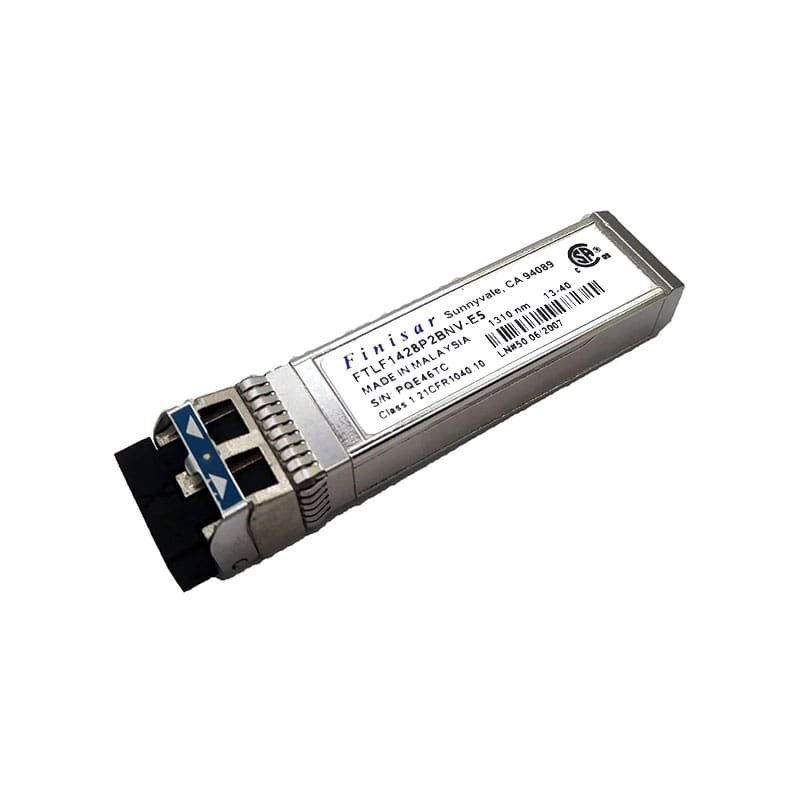

FTLF1428P2BNV-E5 Finisar 8Gb/s Dual LC 10Km SFP+ Fiber Optic Module
FTLF1428P2BNV-E5 Overview
The Finisar EMC 019-078-043 is an advanced 8Gb/s SFP+ fiber optic module designed for high-performance connectivity. Operating at a wavelength of 1310nm, it supports distances up to 10Km and features a dual LC connector, making it ideal for FC SAN storage networks.
FTLF1428P2BNV-E5 Technical Specifications
Finisar EMC 019-078-043 8Gb/s Dual LC 10Km SFP+ Fiber Optic Module
Brand Name: FINISAR
Application: FC SAN Storage Network
Network Type: Wired LAN
Form Factor: SFP+
Maximum Data Rate: 8G
Wavelength: 1310nm
Transmission Distance: 10km
Connector Type: Dual LC
DDMI Support: Yes
Fiber Type: SMF
Power Supply: 3.3V
TOSA Technology: DFB
ROSA Technology: PIN
Operating Temperature Range: -5°C to 70°C
Diagnostics: Digital
Transmitter Type: DFB
Receiver Type: PIN
Voltage Supply: 3.3-5V
Packaging: Antistatic plastic box, retail box
Weight: 20g
