FN-TRAN-QSFP28-LR Fortinet – Enhanced QSFP28 Transceiver Module
FN-TRAN-QSFP28-LR Overview
Fortinet offers a comprehensive selection of pluggable copper and optical transceiver modules, specifically engineered for use with Fortinet appliances like the FortiGate® and FortiSwitch™, among others that feature transceiver module slots.
7,277.00 AED
FN-TRAN-QSFP28-LR Technical Specifications
Fortinet – QSFP28 Transceiver Module
Brand: Fortinet
Product Line: Fortinet
Network & Communication
Cable Type: 100GBase-LR4 Ethernet
Compliant Standards: IEEE 802.3ba
Connectivity Technology: Wired
Data Link Protocols: 100 Gigabit Ethernet
Data Transfer Rate: 103.1 GBps
Features: Hot swappable, Digital Diagnostics Monitoring (DDM), Auto-negotiation
Form Factor: Plug-in module
Max Transfer Distance: 6.2 miles
Optical Wave Length: 1310 nm
Product Type: QSFP28 transceiver module
Connectivity
Interface Provided: 1 x LC single-mode female Ethernet 100GBase-LR4
Power
Operational Power Consumption: 3.5 watts
Cables
Left Connector SD Type: LC single-mode
Technical Information
Max Operating Temperature: 158°F
Min Operating Temperature: 32°F
Product Information
Packaged Quantity: 1
Certifications & Listings
ENERGY STAR Certified: No
Related Products
FN-TRAN-SFP+GC Overview
The 10GBASE-T transceiver module delivers high-speed connectivity at 10Gbps. With its SFP+ form factor and RJ-45 interface, it allows for the use of CAT6A/CAT7 cables to connect to devices with integrated 10GBASE-T ports. Supporting distances of up to 30 meters, it serves as a cost-effective choice for both intra-rack and inter-rack connections.

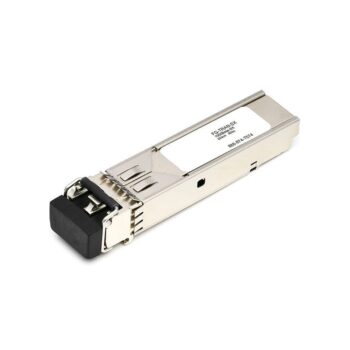

FN-TRAN-SX Overview
