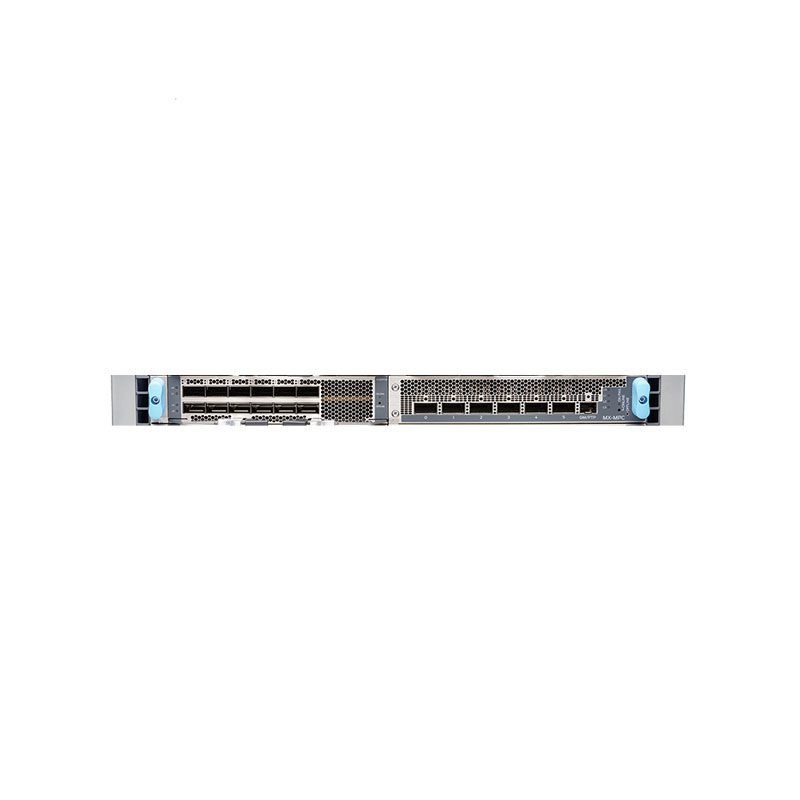

EX9253-6Q12C Juniper Networks 12-Port Line Card Expansion Module
EX9253-6Q12C Overview
The EX9253-6Q12C is a versatile line card expansion module featuring 12 ports of QSFP28 for 40GbE/100GbE and 6 ports of QSFP+ for 40GbE. This module is designed to enhance performance and is compatible with the EX9253 Ethernet switch.
110,073.00 AED
EX9253-6Q12C Technical Specifications
Juniper Networks Line Card Expansion Module
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks
Model: EX9253-6Q12C Line Card
Packaged Quantity: 1
Networking
Type: Expansion module
Form Factor: Plug-in card
Connectivity Technology: Wired
Data Link Protocol: 40 Gigabit Ethernet, 100 Gigabit Ethernet
Status Indicators: Online, Link OK, Offline
Ports
Quantity: 12
Type: 100 Gigabit QSFP28
Secondary Ports
Quantity: 6
Type: 40 Gigabit QSFP+
Interface Provided
Interfaces: 6 x 40Gb Ethernet – QSFP+ – female, 12 x 40Gb Ethernet/100Gb Ethernet – QSFP28 – female
Power Device
Power Consumption Operational: 740 watts
Miscellaneous
Color Category: Gray
Pricing Type: Field Replaceable Unit (FRU)
Dimensions & Weight
Width: 1.3 inches
Depth: 22 inches
Height: 17 inches
Weight: 14.55 lbs
Compatibility
Compatible With: Juniper Networks EX Series 9253
