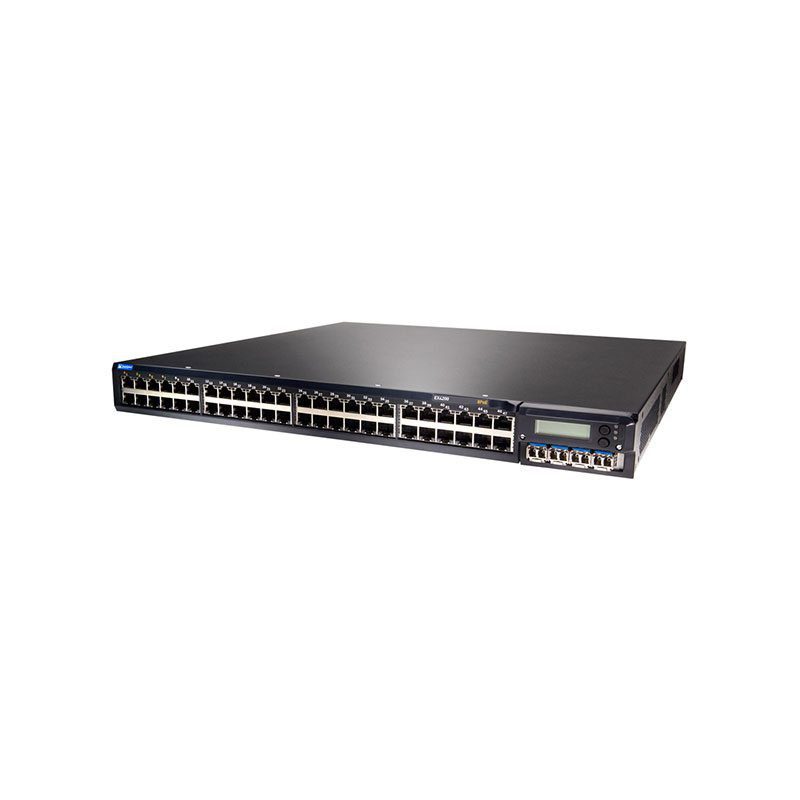

EX4200-48T-DC Juniper EX4200 48-Port Managed Switch
EX4200-48T-DC Overview
The Juniper Networks EX 4200 series switches utilize Virtual Chassis technology to merge the high availability and reliability of modular systems with the flexibility and cost-effectiveness of stackable solutions, providing a robust and scalable option for data centers, campuses, and branch offices.
8,305.00 AED
EX4200-48T-DC Technical Specifications
Juniper Networks EX 4200 48-Port Managed Switch
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX 4200
Model: 48T
Packaged Quantity: 1
Chassis
Built-in Devices: Status LCD
Processor
Type: PowerPC
Clock Speed: 1 GHz
RAM
Installed Size: 1 GB
Flash Memory
Installed Size: 1 GB, 1 GB
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Form Factor: Desktop
Stackable: Yes
Max Units in a Stack: 10
Ports Quantity: 48
Advanced Switching: Layer 3
Routing Protocols: RIP-2, VRRP, IS-IS, Policy-based routing (PBR), IGMPv2, BGP, IGMP, OSPF, Static IP routing, PIM-SM, IGMPv3, RIP-1
MAC Address Table Size: 24K entries
Manageable: Yes
Remote Management Protocol: RMON 1, SNMP 1, SNMP 2, HTTP, SNMP 3, HTTPS, RMON 2, SSH-2, RMON, RMON 3, RMON 9
Status Indicators: LCD display
Features: Supports DHCP, Syslog, Jumbo Frames, DHCP snooping, IGMP snooping, DoS attack prevention, 256-bit encryption, IPv6, TDR, Hot swap module replacement, Virtual Chassis technology, VLAN support, DHCP proxy, ARP support, PoE, Dynamic ARP Inspection, Store and forward, RADIUS support, Layer 3 switching, Routing, DHCP server, Auto-uplink, Quality of Service, Temperature sensor, Non-Stop Bridging, High Availability, MPLS support, Redundant trunk group, Non-Stop Routing, Layer 2 switching, Graceful Route Engine Switchover
Compliant Standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1s, IEEE 802.1x, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad
Ports
Quantity: 48
Type: 10/100/1000
Expansion Slots
Expansion Slots: 1 (total) / 1 (free)
Interface Provided
Interfaces: 1 x network stack device, 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 PoE, 40 x 10Base-T/100Base-TX/1000Base-T – RJ-45, 1 x management
Software
Type: Juniper NetScreen-Security Manager
Power Device
Type: Internal power supply
Hot-Plug: Yes
Power Redundancy: Yes
Installed Quantity: 1
Max Supported Quantity: 2
Power Consumption Operational: 190 watts
Miscellaneous
Height (Rack Units): 1
Encryption Algorithm: TTLS, PEAP, TLS, MD5
Authentication Method: RADIUS, EAP, TACACS+, SSH v.2
Compliant Standards: IEC 60950-1, EN55022 Class A, EN55024, VCCI Class A ITE, EN 60950-1, UL 60950-1, CISPR 22 Class A, CSA 22.2 No. 60950, ICES-003 Class A, cUL, TUV GS, RoHS 5/6, EN300-386, FCC CFR47 Part 15, EN 300 386
Dimensions & Weight
Width: 17.4 inches
Depth: 16.4 inches
Height: 1.7 inches
Weight: 17.2 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 113°F
Humidity Range Operating: 10 – 85%
