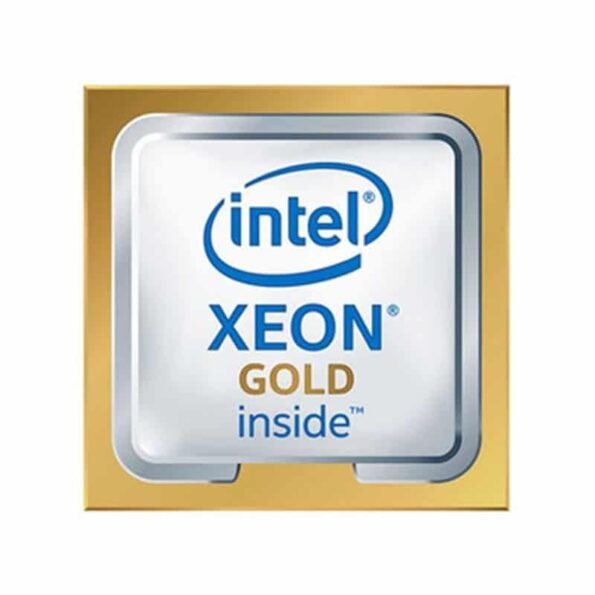

CD8069504214601S Intel Xeon Gold 5220 2.2 GHz Processor
CD8069504214601S Overview
Discover the power of the CD8069504214601S Intel Xeon Gold 5220 Cascade Lake processor, featuring a 2.2 GHz base clock speed, 24.75MB L3 cache, and a robust LGA 3647 socket design. With a thermal design power of 125W, this processor is engineered for high-performance computing tasks.
CD8069504214601S Technical Specifications
Intel Xeon Gold 5220 Cascade Lake 2.2 GHz 24.75MB L3 Cache
Model
Brand: Intel
Series: Xeon
Name: Xeon Gold 5220
Model: CD8069504214601S
Details
CPU Socket Type: LGA 3647
Core Name: Cascade Lake
Number of Cores: 18-Core
Threads: 36
Base Operating Frequency: 2.2 GHz
Max Turbo Frequency: 3.9 GHz
L3 Cache Size: 24.75MB
64-Bit Support: Yes
Hyper-Threading: Yes
Manufacturing Technology: 14 nm
Virtualization Technology: Yes
PCI Express Revision: 3.0
Maximum Number of PCI Express Lanes: 48
Thermal Design Power (TDP): 125W
This processor is designed to handle demanding workloads with efficiency and speed, making it an excellent choice for enterprise-level applications.
