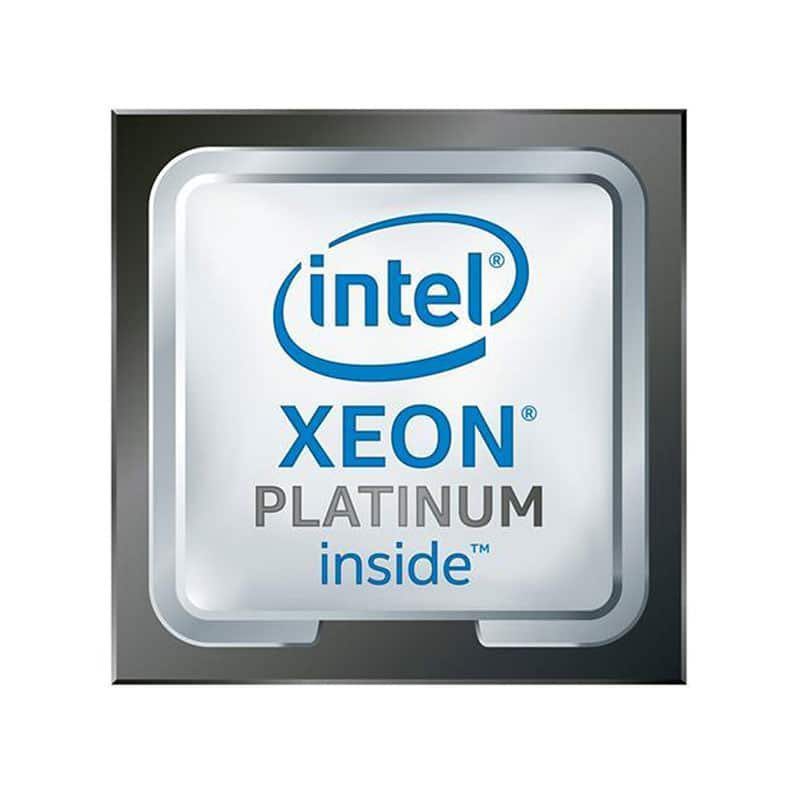

CD8069504195301 Intel Xeon Platinum 8276L Processor 28-Core 2.20GHz
CD8069504195301 Overview
Experience the power of the CD8069504195301 Intel Xeon Platinum 8276L, a robust 28-Core processor with a clock speed of 2.20GHz and a substantial 39MB cache, designed for high-performance server applications and optimized for demanding workloads.
CD8069504195301 Technical Specifications
Intel Xeon Platinum 8276L 28-Core 2.20GHz Processor
Brand: Intel
Part No: CD8069504195301
Processor Type: Server
Processor Family: 2nd Generation Intel Xeon Scalable Processors
Series: Xeon Platinum Processor
Core Model: 8276L
Code Name: Cascade Lake
Manufacturing Technology: 14 nm
Number of Cores: 28
Number of Threads: 56
Base Clock Speed: 2.20 GHz
Max Turbo Frequency: 4.00 GHz
L3 Cache: 39 MB
UPI Links: 3
TDP: 165 Watts
Maximum Memory Size: 4.5 TB
Memory Types: DDR4-2933
Max Memory Speed: 2933 MHz
Memory Channels: 6
ECC Memory Supported: Yes
Intel Optane DC Persistent Memory Supported: Yes
Socket Type: LGA 3647
Package Dimensions: 76.0mm x 56.5mm
TCASE: 89 °C
Embedded Options: No
