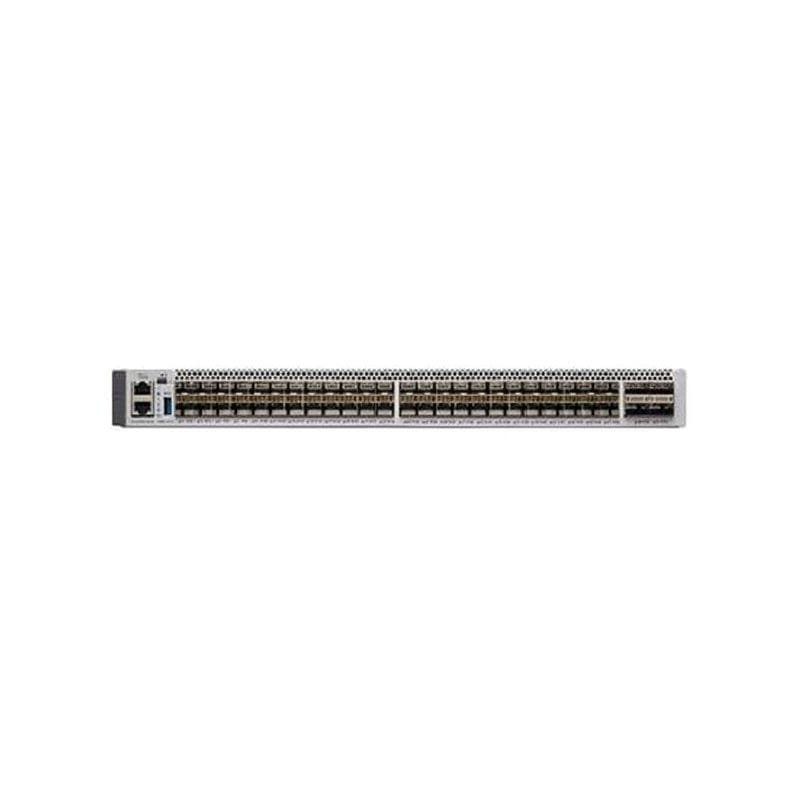

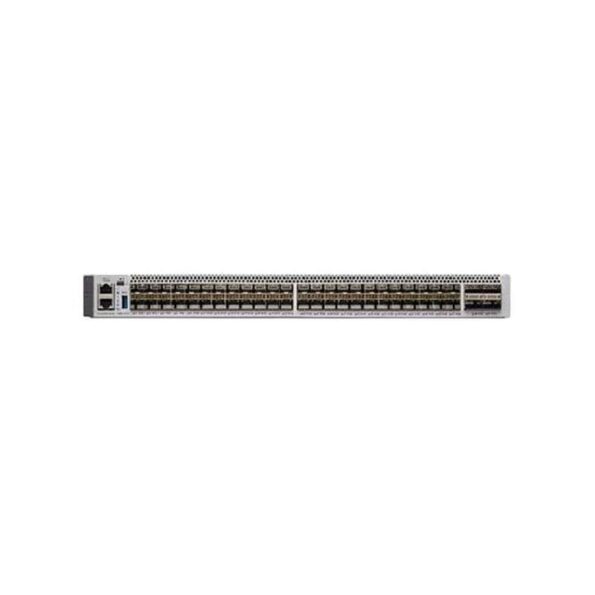

C9500-48Y4C-EDU Cisco Catalyst 9500 48-Port Managed Switch
C9500-48Y4C-EDU Overview
The Cisco Catalyst 9500 Series represents the forefront of enterprise-class core and aggregation layer switches, featuring complete programmability and serviceability. Built on an x86 CPU, this series is designed for security, IoT, and cloud environments, establishing itself as the first purpose-built 40 Gigabit Ethernet switch line for enterprise campuses.
19,999.00 AED
C9500-48Y4C-EDU Technical Specifications
Cisco Catalyst 9500 48-Port Managed Switch
Cabinet
- Chassis Built-in Devices: RFID tag
Capacity
- FNF entries: 96000
- Host IPv4 routes: 90000
- Host IPv6 routes: Not specified
- Indirect IPv4 routes: 212000
- Indirect IPv6 routes: Not specified
- Multicast scale: 32000
- QoS ACL scale: 16000
- Routing table entries: 80000
- Security ACL scale: 270000
- Switched virtual interfaces (SVIs): Not specified
- VLAN IDs: 4000
Dimensions & Weight
- Depth: 18 in
- Height: 1.7 in
- Weight: 21.96 lbs
- Width: 17.5 in
Environmental Parameters
- Operating Humidity Range: 5 – 90% (non-condensing)
- Storage Humidity Range: 5 – 95% (non-condensing)
- Max Operating Temperature: 104 °F
- Max Storage Temperature: 149 °F
- Min Operating Temperature: 32 °F
- Min Storage Temperature: -4 °F
Flash Memory
- Installed Size: 16 GB
Header
- Brand: Cisco
- Manufacturer: CISCO DS HARDWARE DIRECT
- Model: 9500
- Packaged Quantity: 1
- Product Line: Cisco Catalyst
Interface Provided
- Connector Type: SFP28
- Qty: 48 SFP28
- Type: 25Gbit LAN
- Qty: 2
- Type: USB 3.0
- Qty: 4
- Type: 100Gbit LAN
Miscellaneous
- Color Category: Gray
- Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, etc.
- Encryption Algorithm: 256-bit AES
- Height (Rack Units): 1
- MTBF: 316,960 hours
- Pricing Type: Academic
Networking
- Advanced Switching: Layer 3
- Compliant Standards: IEEE 802.1 series, IEEE 802.3 series
- Features: ACL support, CoAP support, HSRP support, etc.
- Form Factor: Rack-mountable
- Jumbo Frame Support: 9198 bytes
- MAC Address Table Size: 64K entries
- Manageable: Yes
- Ports Qty: 48
- Remote Management Protocol: NETCONF, RESTCONF, etc.
- Routing Protocol: BGP, EIGRP, OSPF, etc.
- Subcategory: Network hubs and switches
- Subtype: 25 Gigabit Ethernet
- Type: Switch
Performance
- Forwarding Rate: 1 Bpps
- Switching Capacity (full duplex): 3.2 Tbps
Ports
- Qty: 48
- Type: 25 Gigabit SFP28
Power Device
- Frequency Required: 50 – 60 Hz
- Hot-Plug: Yes
- Installed Qty: 1
- Max Supported Qty: 2
- Nominal Voltage: AC 120/230 V
- Power Provided: 650 Watt
- Power Redundancy: Optional
- Power Redundancy Scheme: 1+1
- Type: Internal power supply
Processor
- Clock Speed: 2.4 GHz
- Installed Qty: 1
RAM
- Installed Size: 16 GB
