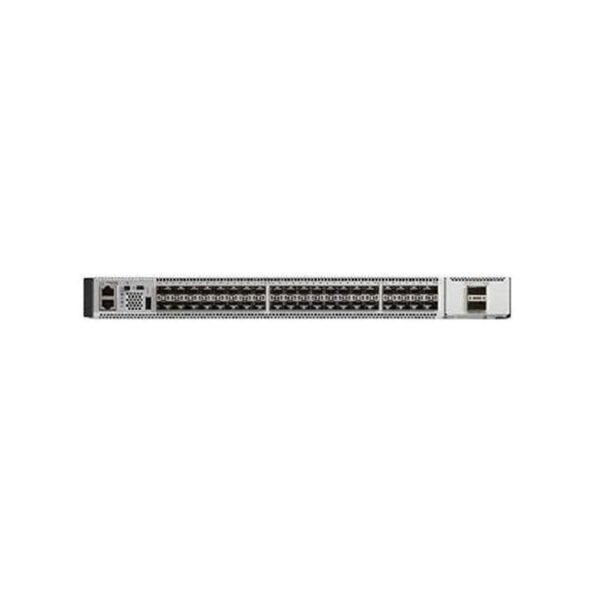

C9500-40X-EDU Cisco Catalyst 9500 40-Port Managed Switch
C9500-40X-EDU Overview
The Cisco Catalyst 9500 Series represents the next evolution in enterprise-class core and aggregation layer switches, offering complete programmability and serviceability. Powered by an x86 CPU, this series is Cisco’s premier fixed core and aggregation platform designed for security, IoT, and cloud applications. Notably, it is the first enterprise-targeted 40 Gigabit Ethernet switch line.
26,789.00 AED
C9500-40X-EDU Technical Specifications
Cisco Catalyst 9500 40-Port Managed Rack Mountable Switch
Cabinet
Chassis Built-in Devices: RFID tag
Interface Provided
Connector Type: SFP+ (40 Ports), USB 3.0 (2 Ports)
Networking
Advanced Switching: Layer 3
Standards Compliance: IEEE 802.1ae, 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad (LACP), 802.3ae, 802.3u, 802.3x, 802.3z
Features: ACL support, Built-in ASIC, Cisco StackWise Virtual, Flexible NetFlow, IGMP snooping, IPv6 support, LLDP, LISP, MACsec, MLD snooping, NetFlow, NSF, OSPF, QoS, RSPAN, SSO, SPAN, Syslog support, VRRP, Q-in-Q, WRED, ZTP
Form Factor: Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 64K entries
Manageable: Yes
Power Over Ethernet: UPOE
Routing Protocols: IGMP, MPLS, OSPF, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng, VRRP
Miscellaneous
Color: Gray
Compliant Standards: AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, EN 300386, FCC CFR47 Part 15, UL 60950-1
Encryption Algorithm: 256-bit AES
Height (Rack Units): 1
MTBF: 180,640 hours
Pricing Type: K-12 education
Environmental Parameters
Operating Humidity: 5 – 90% (non-condensing)
Operating Temperature: 32 °F to 104 °F
Storage Temperature: -4 °F to 149 °F
Header
Brand: Cisco
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9500
Packaged Quantity: 1
Product Line: Cisco Catalyst
Power Device
Features: Front-to-rear airflow
Nominal Voltage: AC 120/230 V
Power Provided: 950 Watt
Processor
Clock Speed: 2.4 GHz
Dimensions & Weight
Depth: 21.5 in, Height: 1.7 in, Width: 17.5 in
Performance
Forwarding Rate: 720 Mpps
Switching Capacity: 960 Gbps
Ports
Qty: 40, Type: 10 Gigabit SFP+
RAM
Installed Size: 16 GB, Technology: DDR4 SDRAM
