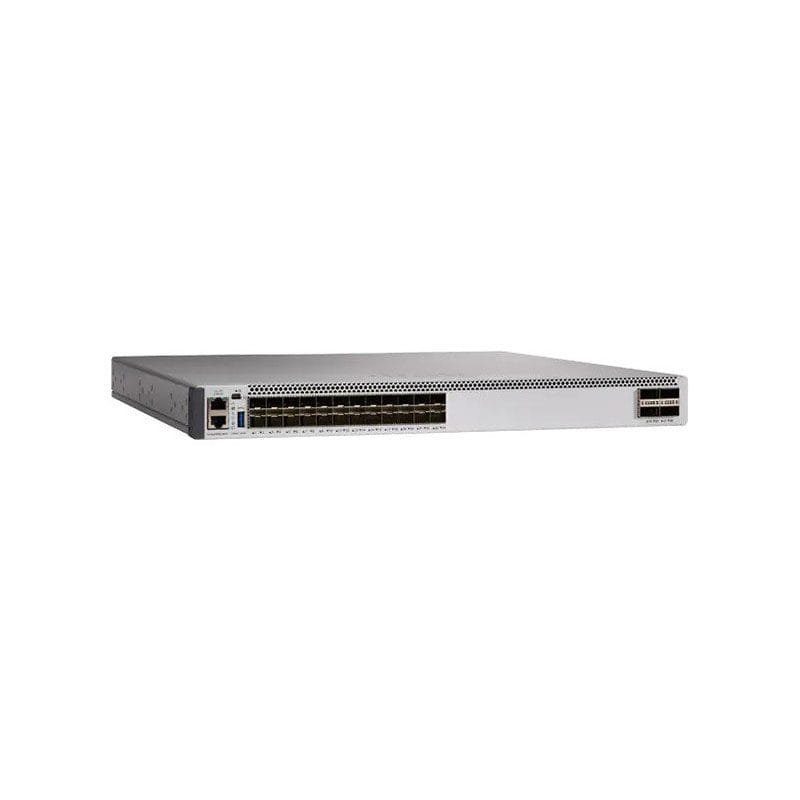

C9500-24Y4C-1E Cisco Catalyst 9500 24-Port Network Switch
C9500-24Y4C-1E Overview
The Cisco Catalyst 9500 Series Switches represent the forefront of enterprise-class core and aggregation layer switches, offering exceptional programmability and serviceability. Powered by an x86 CPU, this series is Cisco’s flagship fixed core and aggregation platform, expertly designed for security, IoT, and cloud applications. It is also the first purpose-built 40 Gigabit Ethernet switch line for enterprise campuses.
19,499.00 AED
C9500-24Y4C-1E Technical Specifications
Cisco Catalyst 9500 Network Essentials 24-Port Managed Switch
Cabinet
Chassis Built-in Devices: RFID tag
Environmental Parameters
Operating Humidity Range: 5 – 90% (non-condensing)
Storage Humidity Range: 5 – 95% (non-condensing)
Max Operating Temperature: 104 °F
Max Storage Temperature: 149 °F
Min Operating Temperature: 32 °F
Min Storage Temperature: -4 °F
Header
Brand: Cisco
Edition: Network Essentials
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9500
Packaged Quantity: 1
Product Line: Cisco Catalyst
Interface Provided
Connector Type: SFP28
Qty: 24 SFP28
Type: 25Gbit LAN
Qty: 2
Type: USB 3.0
Qty: 4
Type: 100Gbit LAN
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
Encryption Algorithm: 256-bit AES
Height (Rack Units): 1
MTBF: 336,780 hours
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x
Features: 802.1x authentication, Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, DHCP support, Ethernet over MPLS (EoMPLS), First Hop Security (FHS), Integrated Wireshark, IPv6 support, Management Information Base (MIB), Maximum Likelihood Demodulation (MLD), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, NAT support, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Secure boot, Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Switched Port Analyzer (SPAN), Virtual Routing and Forwarding (VRF), Weighted Random Early Detection (WRED), Zero-touch provisioning (ZTP)
Form Factor: Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 64K entries
Manageable: Yes
Ports Qty: 24
Remote Management Protocol: NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: BGP, EIGRP, IGMP, MSDP, OSPF, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable: Yes
Status Indicators: Status
Subcategory: Network hubs and switches
Subtype: 25 Gigabit Ethernet
Type: Switch
Power Device
Frequency Required: 50 – 60 Hz
Hot-Plug: Yes
Installed Qty: 1
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Provided: 650 Watt
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Type: Internal power supply
Processor
Clock Speed: 2.4 GHz
Installed Qty: 1
Dimensions & Weight
Depth: 18 in
Height: 1.7 in
Weight: 20.99 lbs
Width: 17.5 in
Service & Support
Type: Limited lifetime warranty
Capacity
Type: FNF entries
Value: 96000
Type: Host IPv4 routes
Value: 90000
Type: Host IPv6 routes
Type: Indirect IPv4 routes
Value: 212000
Type: Indirect IPv6 routes
Type: Multicast scale
Value: 32000
Type: QoS ACL scale
Value: 16000
Type: Routing table entries
Value: 80000
Type: Security ACL scale
Value: 270000
Type: Switched virtual interfaces (SVIs)
Type: VLAN IDs
Value: 4000
Flash Memory
Installed Size: 16 GB
Performance
Type: Forwarding rate
Value: 1 Bpps
Type: Switching capacity (full duplex)
Value: 1.6 Tbps
Ports
Qty: 24
Type: 25 Gigabit SFP28
RAM
Installed Size: 16 GB
