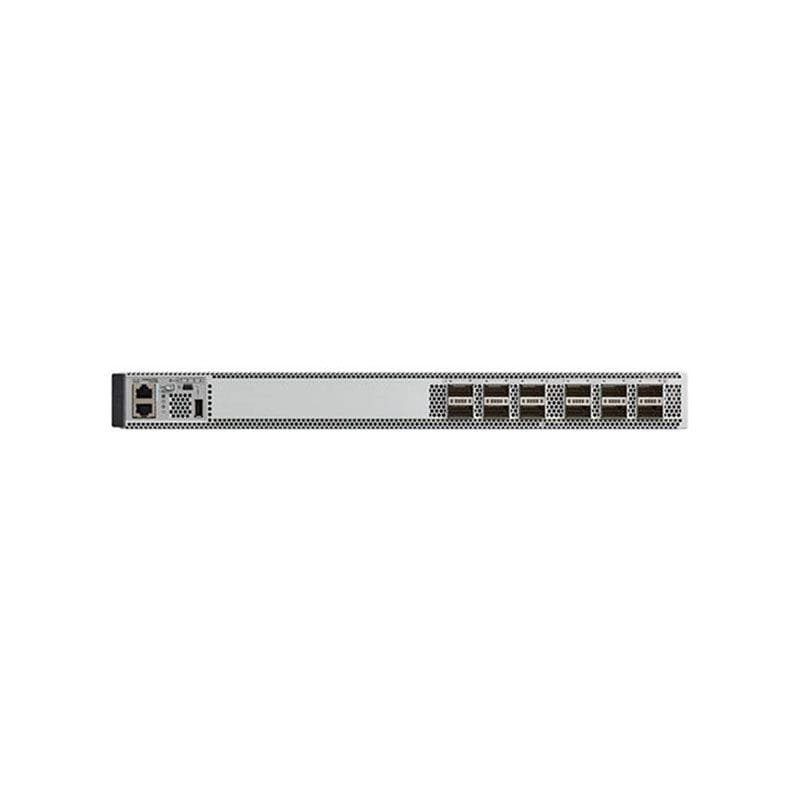

C9500-12Q-E Cisco Catalyst 9500 12-Port 40G Switch
C9500-12Q-E Overview
C9500-12Q-E is a model within the Cisco Catalyst 9500 Series, designed as an advanced enterprise-class core and aggregation layer switch. This next-generation switch is built for programmability and serviceability, supporting security, IoT, and cloud applications. It is the first enterprise-targeted switch line to offer 40 Gigabit Ethernet capabilities.
17,598.00 AED
C9500-12Q-E Technical Specifications
Cisco Catalyst 9500 12-Port 40G Switch, Network Essentials.
General Information
Manufacturer: Cisco Systems, Inc
Part Number: C9500-12Q-E
Brand: Cisco
Product Line: Cisco Catalyst
Product Series: C9500
Device Type: Managed Stackable Switch – 12 Ports – L3
Enclosure: Rack-mountable 1U
Subtype: 40 Gigabit Ethernet
Ports: 12 x 40 Gigabit QSFP
Performance
Switching Capacity (full duplex): 480 Gbps | Forwarding Rate: 720 Mpps
Capacity
IPv4 Routes: 64,000 (Indirect), 32,000 (Host) | IPv6 Routes: 32,000 (Indirect), 16,000 (Host) | Multicast Scale: 48,000 | QoS ACL Scale: 18,000 | Security ACL Scale: 18,000 | FNF Entries: 512,000 | VLAN IDs: 4,000 | Switched Virtual Interfaces (SVIs): 4,000
MAC Address Table: 64K entries
Jumbo Frame Support: 9198 bytes
Routing Protocols: OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF
Encryption: 256-bit AES
Processor: 2.4 GHz
RAM: 16 GB
Flash Memory: 16 GB
Built-in Devices: RFID tag
Status Indicators: Status
Expansion / Connectivity
Interfaces: 12 x 40Gbit LAN QSFP
Power
Power Device: Internal hot-plug power supply
Installed Qty: 2 (installed) / 2 (max)
Power Redundancy: Optional (1+1 scheme)
Power Provided: 950 Watts
Voltage Required: AC 120/230 V (50 – 60 Hz)
