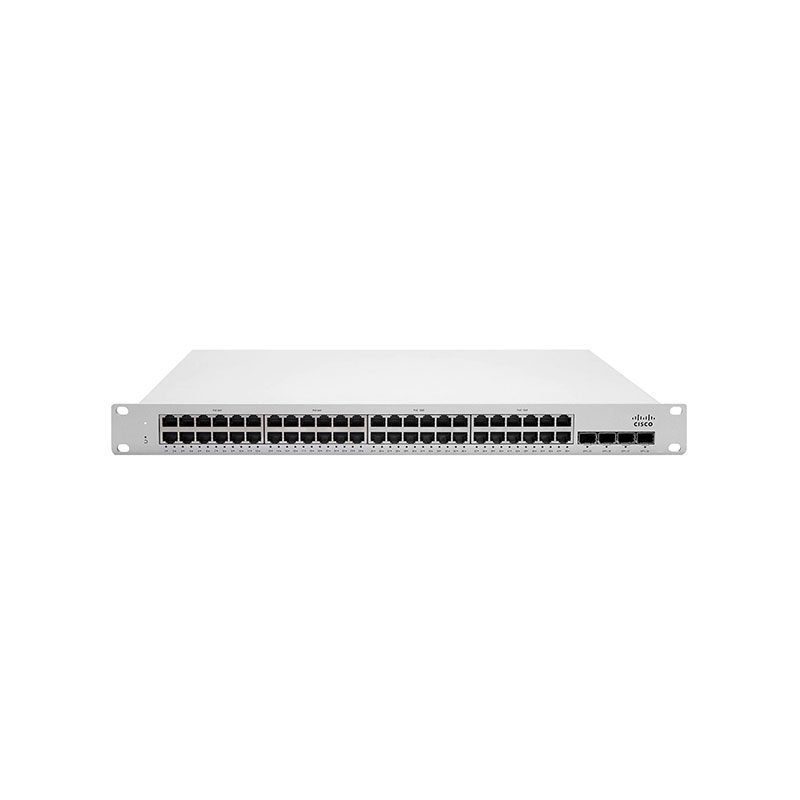

C9300L-48T-4X-E Cisco Catalyst 9300L Essentials Switch
C9300L-48T-4X-E Overview
The Catalyst 9300 Series utilizes Cisco StackWise technology for flexible deployment and ensures uninterrupted forwarding with Stateful Switchover (NSF/SSO). This switch boasts a robust power architecture featuring Cisco StackPower, delivering high-density Cisco Universal Power over Ethernet (Cisco UPOE) and PoE+ ports, alongside advanced security and IoT convergence capabilities with Cisco IOS XE.
5,488.00 AED
C9300L-48T-4X-E Technical Specifications
Cisco Catalyst 9300L Network Essentials Switch with 48 Ports
Environmental Parameters
Humidity Operating Range: 5 – 90% (non-condensing)
Humidity Storage Range: 5 – 90% (non-condensing)
Max Storage Temperature: 158 °F
Min Storage Temperature: -40 °F
Header
Brand: Cisco
Edition: Network Essentials
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9300L
Packaged Quantity: 1
Product Line: Cisco Catalyst
Interface Provided
Comments: Uplink
Connector Type: SFP+ (4 Ports, 10GBase-X)
Connector Type: RJ-45 (48 Ports, 1000Base-T)
Miscellaneous
Color: Gray
MTBF: 380,080 hours
Networking
Advanced Switching: Layer 3
Features: 16MB packet buffer, Cisco StackWise Technology, Quality of Service (QoS), and more. This switch supports a wide array of protocols and offers a robust management interface. Power Device
Nominal Voltage: AC 120/230 V
Power Provided: 350 Watt
Dimensions & Weight
Dimensions: 1.7 in (D) x 16.1 in (H) x 17.5 in (W)
Weight: 15.43 lbs
Performance
Switching Capacity: 176 Gbps
Forwarding Rate: 130.95 Mpps
Ports
Total Ports: 48 (10/100/1000) and 4 (10 Gigabit SFP+)
RAM
Installed Size: 8 GB
