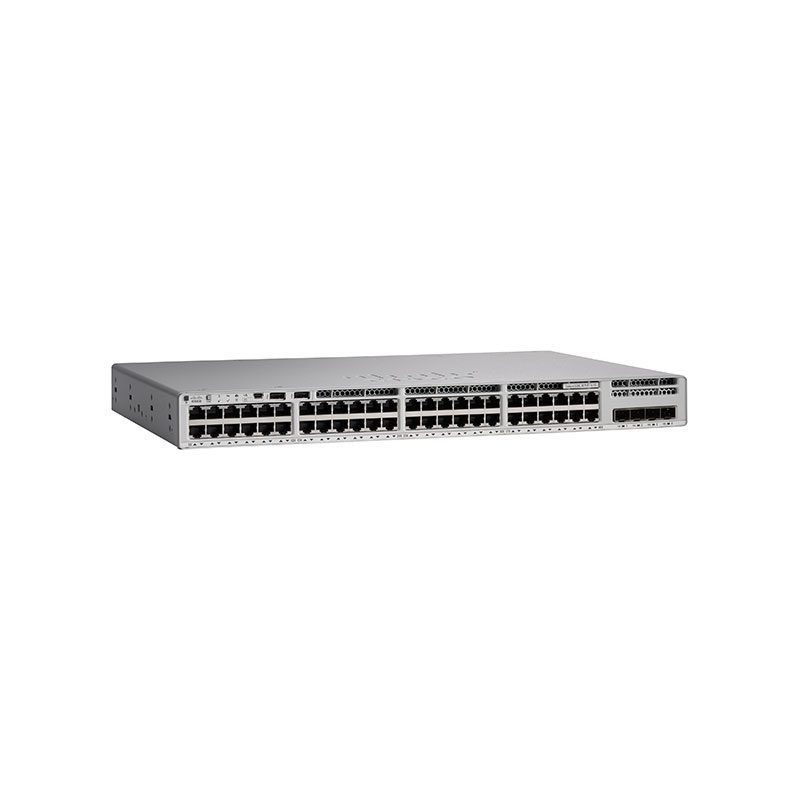

C9300L-48T-4G-A Cisco Catalyst 9300L Switch – 48 Ports
C9300L-48T-4G-A Overview
The Catalyst 9300 Series utilizes Cisco StackWise technology, ensuring flexible deployment and non-stop forwarding with Stateful Switchover (NSF/SSO). This architecture guarantees resilience in stackable solutions. Equipped with Cisco StackPower, it supports high-density UPOE and PoE+ ports. Built on the Cisco UADP 2.0 architecture, it safeguards your investment while enabling scalability and enhanced throughput.
5,799.00 AED
C9300L-48T-4G-A Technical Specifications
Cisco Catalyst 9300L-48T-4G-A Switch
Environmental Parameters
Operating Humidity: 5 – 90% (non-condensing)
Storage Humidity: 5 – 90% (non-condensing)
Max Operating Temp: 113 °F
Max Storage Temp: 158 °F
Min Operating Temp: 23 °F
Min Storage Temp: -40 °F
Header
Brand: Cisco
Edition: Network Advantage
Manufacturer: Cisco Systems
Model: 9300L
Packaged Quantity: 1
Product Line: Cisco Catalyst
Interface Provided
Comments: Uplink
Connector Type: SFP, Qty: 4 SFP, Type: 1000Base-X
Connector Type: RJ-45, Qty: 48, Type: 1000Base-T
Comments: 1 Console, Management (LAN), USB 2.0
Miscellaneous
Color: Gray
Standards Compliance: AS/NZS 60950-1, EN 300 386, FCC CFR47 Part 15, and others
Encryption: 128-bit AES, 256-bit AES
MTBF: 387,860 hours
Networking
Advanced Switching: Layer 3
Standards Compliance: IEEE 802.1Q, IEEE 802.3, Wi-Fi CERTIFIED 6, and more
Features: 802.1x authentication, Cisco StackWise-320, QoS, and others
Form Factor: Rack-mountable
Power Device
Max Supported Qty: 2, Nominal Voltage: AC 120/230 V
Power: 350 Watt, Redundancy: Optional
Dimensions
Depth: 1.7 in, Height: 16.1 in, Width: 17.5 in, Weight: 15.43 lbs
Performance
Forwarding Rate: 77.38 Mpps, Switching Capacity: 104 Gbps
Ports
Qty: 48, Type: 10/100/1000, Uplink: 4 Gigabit SFP
RAM
Installed Size: 8 GB
