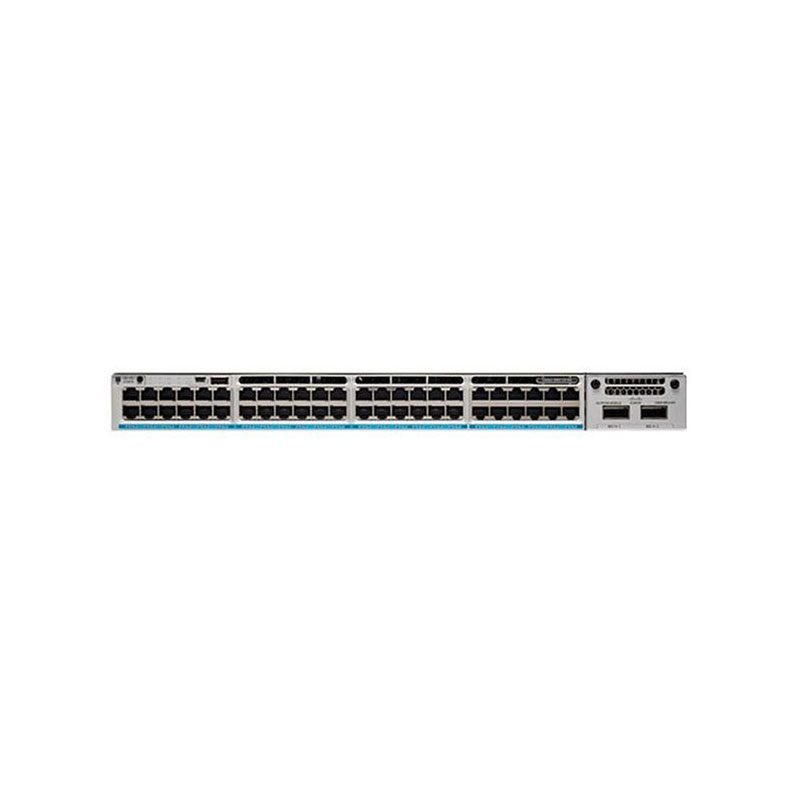

C9300L-48P-4X-A Cisco Catalyst 9300L Network Advantage Switch for High-Density Connectivity
C9300L-48P-4X-A Overview
The Cisco Catalyst 9300 Series switches represent the pinnacle of stackable enterprise switching, designed for security, IoT, mobility, and cloud applications. As the next evolution of the most widely deployed switching platform, they support Software-Defined Access (SD-Access) and offer unmatched stacking bandwidth of up to 480 Gbps, making them ideal for future-proofing your network.
4,339.00 AED
C9300L-48P-4X-A Technical Specifications
Cisco Catalyst 9300L Network Advantage Switch with 48 Ports
Capacity
- ACL Scale Entries: 32,000
- IPv4 Routes: 32,000
- IPv6 Routes: 16,000
- Multicast Scale: 8,000
- QoS Scale Entries: 5,120
- Routed Ports: 416
- Switched Virtual Interfaces (SVIs): 1,000
- Supported VLANs: 4,094
Dimensions & Weight
- Depth: 1.7 in
- Height: 17.7 in
- Weight: 15.5 lbs
- Width: 17.5 in
Environmental Parameters
- Operating Humidity: 5 – 90% (non-condensing)
- Storage Humidity: 5 – 90% (non-condensing)
- Max Operating Temperature: 113 °F
- Max Storage Temperature: 158 °F
- Min Operating Temperature: 23 °F
- Min Storage Temperature: -40 °F
Flash Memory
- Installed Size: 16 GB
Header
- Brand: Cisco
- Edition: Network Advantage
- Model: 9300L
- Packaged Quantity: 1
- Product Line: Cisco Catalyst
Interface Provided
- PoE+: 48 RJ-45 Ports
- Uplink: 4 SFP+ Ports
- Management: Console, USB 2.0
Miscellaneous
- Color: Gray
- Compliant Standards: Various international safety and performance standards
- MTBF: 309,020 hours
Networking
- Advanced Switching: Layer 3
- Features: Supports a variety of advanced networking protocols and security features
Performance
- Forwarding Rate: 130.95 Mpps
- Switching Capacity: 176 Gbps
Power Device
- Power Over Ethernet: PoE+
- Power Provided: 715 Watt
RAM
- Installed Size: 8 GB
