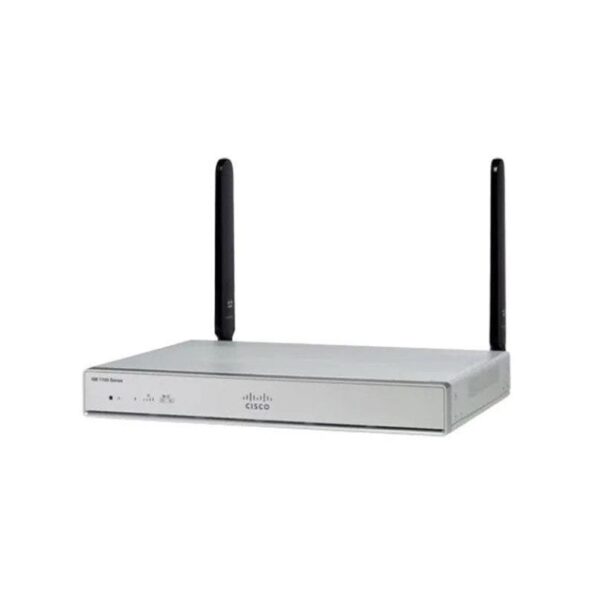

C1111-8PLTELAWQ Cisco 1100 Series ISR – Integrated Services Router

C1111-8PLTELAWQ Technical Specifications

Cisco 1100 Series Integrated Services Router

Description
The ISR 1100 8P Dual GE WAN router includes LTE Advanced, SMS/GPS, and 802.11ac -Q WiFi capabilities.
Physical Properties
Dimensions (H x W x D):
LTE models:
H x W x D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (with rubber feet)
Weight with AC Power Supply (without modules):
5.5 lbs. (2.5 kg) maximum.
AC Input Power
Input voltage:
Universal 100 to 240 VAC
Frequency:
50-60 Hz
Input current:
PoE not enabled: 0.82A maximum
PoE enabled: 1.55A maximum
Surge current:
90 A peak, less than 8 Arms per half cycle.
Ports
Micro USB Port:
One RJ-45: Separate console port.
USB Port
USB 3.0 Type A host port, supports USB flash memory devices.
Console Port
One USB 5-pin micro Type B for console management connectivity.
10/100/1000 Gigabit Ethernet:
Two GE ports distributed among RJ45 and SFP:
One combo port with 10/100/1000 RJ-45 or SFP Ethernet (labeled GE0/0/0) and one dedicated 10/100/1000 RJ-45 Ethernet port (labeled GE0/0/1).
Wireless VLANs
Supports 32 VLANs (both encrypted and non-encrypted).
Wireless specifications:
2×2 .11ac Wave 2.
Default and maximum DRAM: 4GB.
Default and maximum flash: 4GB.
Inline PoE
4 ports for -8P PIDs, 2 ports for -4P PIDs.
802.3af-compliant PoE or 802.3at-compliant PoE+.
Acoustic for Cisco 1100 Series ISRs:
Not Applicable – Fanless design.
