C1109-2PLTEGB Cisco 1100 Series ISR – Integrated Services Router
C1109-2PLTEGB Overview
The Cisco 1100 Series Integrated Services Router (ISR) offers robust Cisco IOS® XE Software, enabling WAN connectivity, extensive security, and both wired and wireless access within a single high-performance device. Perfectly suited for small to medium enterprise branch offices, the C1109-2PLTEGB model is an LTE-enabled router designed for efficiency and reliability.
C1109-2PLTEGB Technical Specifications
Cisco 1100 Series Integrated Services Router
Description: The C1109-2PLTEGB is a Cisco ISR1109-2P router featuring LTE and GB capabilities.
WAN GE: 1
WAN GE/SFP combo: Not Applicable
ADSL2/VDSL2+: Not Applicable
LTE Advanced (CAT6): Not Applicable
802.11ac: Not Applicable
LAN GEL: 2
PoE or PoE+: Not Applicable
Integrated USB 3.0 AUX/console: Yes (No AUX)
Pluggable: Not Applicable. It utilizes the same CAT4 technology as the PLTE-GB model.
Dimensions (H x W x D)
1.15 x 7.6 x 6.3 inches (29.2 x 193.0 x 160.0mm) including rubber feet.
AC Power Input Voltage
Universal 100 to 240 VAC
Frequency
50-60 Hz
Maximum output power: 30W (default)
Output voltages: 12 VDC
Console Port: Micro USB console (USB 3.0)
Default and maximum DRAM: 4GB
Default and maximum flash: 4GB
Approvals and Compliance: Emission standards include 47 CFR Part 15, CISPR 32 Edition 2, and several IEC and UL standards for safety and performance.
Related Products
ACS-1100-RM2-19 Overview
The Cisco 1100 Series Router Rackmount Wallmount Kit enhances installation options for Cisco 112X and 116X Series Integrated Service Routers. This 1 rack unit (RU) mount includes a dedicated space for the power supply within the bracket, and all necessary installation hardware is provided.
C1116-4P Overview
The Cisco® 1100 Series Integrated Services Routers (ISRs) featuring Cisco IOS® XE Software deliver high-performance Internet access, robust security, and integrated wireless services, including LTE Advanced 3.0 and 802.11ac. Designed for ease of deployment and management, these routers offer scalable multicore capabilities for both data and control planes.
C1116-4PLTEEA Overview
The Cisco 1116 ISR with 4 LTE ports is ideal for small to midsize businesses and enterprise branches. Perfect for ATMs, retail outlets, and kiosks, this model features four LAN ports and supports PoE and PoE+ for powering devices like IP phones. With high Gigabit Ethernet performance and zero-touch provisioning, deploying this router is seamless. Configured for EMEAR and North America.
C1113-8PWB Overview
The Cisco 1100 Series Integrated Services Routers (ISRs) offer a powerful combination of Internet connectivity and robust security features within a single device. Designed for easy deployment and management, these routers provide scalable performance with multicore technology, enhancing both data and control operations.

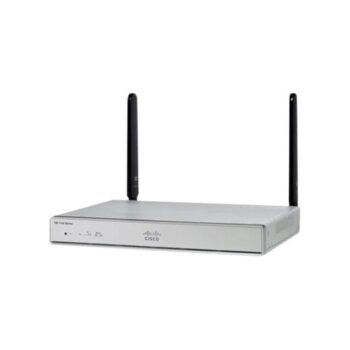

C1118-8P Overview
The Cisco 1100 Series Integrated Services Router (ISR) features Cisco IOS® XE Software, offering robust WAN connectivity, extensive security, and both wired and wireless access in a streamlined, high-performance solution. The C1118-8P model is particularly suited for small to medium enterprise branch offices, providing 8 ports and dual GE WAN Ethernet capabilities with G.SHDSL support.
C1111-4PWZ Overview
The Cisco 1100 Series Integrated Services Router (ISR) offers Cisco IOS® XE Software, enabling WAN connectivity, robust security, and both wired and wireless access within a single, efficient platform. Perfectly suited for small to medium enterprise branch offices, the C1111-4PWZ features a 4 Port Router with Dual GE WAN and supports 802.11ac -Z WiFi.

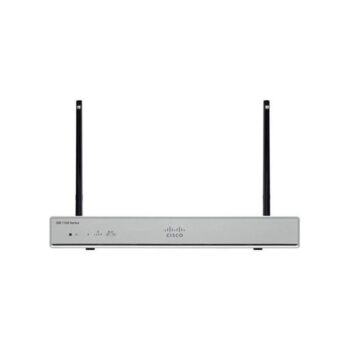

C1112-8PLTEEA Overview
The Cisco 1100 Series Integrated Services Router (ISR) offers Cisco IOS® XE Software, delivering WAN capabilities, robust security, and both wired and wireless access within a single high-performance device. The C1112-8PLTEEA model is specifically designed for small to medium enterprise branch offices, featuring an ISR 1100 G.FAST GE SFP Router with LTE Advanced SMS/GPS for EMEA & NA.
C1113-8PLTELA Overview
The Cisco 1100 Series Integrated Services Router (ISR) offers Cisco IOS® XE Software, combining WAN, robust security, and both wired and wireless access in a single high-performance unit. Ideal for small to medium enterprise branch offices, the C1113-8PLTELA features the ISR 1100 G.FAST GE SFP Router with LTE Advanced SMS/GPS for LATAM & APAC.
C1111-8PLTELAWQ Overview
The Cisco 1100 Series Integrated Services Router (ISR) offers Cisco IOS® XE Software, enabling WAN connectivity, robust security, and both wired and wireless access in a single, high-performance solution. Perfectly suited for small to medium enterprise branch offices, the C1111-8PLTELAWQ model features an 8P Dual GE Router with LTE Advanced, SMS/GPS capabilities, and 802.11ac -Q WiFi.
C1113-8PWA Overview
The Cisco 1100 Series Integrated Services Router (ISR) features Cisco IOS® XE Software, offering a high-performance platform with WAN connectivity, robust security, and both wired and wireless access. Perfectly suited for small to medium enterprise branch offices, the C1113-8PWA model includes G.FAST GE Router capabilities and 802.11ac WiFi technology.

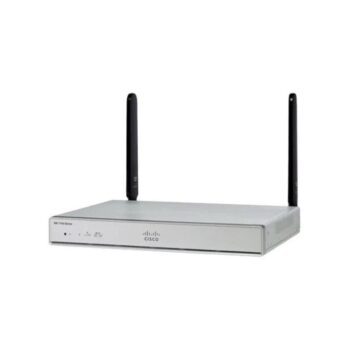

C1113-8PLTELAWZ Overview
The Cisco 1100 Series Integrated Services Router (ISR) combines Cisco IOS® XE Software for WAN connectivity, robust security, and both wired and wireless access in a single, efficient platform. Perfect for small to medium-sized enterprise branch offices, the C1113-8PLTELAWZ model features G.FAST GE Router with 802.11ac and LTE Advanced for LATAM & APAC regions, Z WiFi domain.

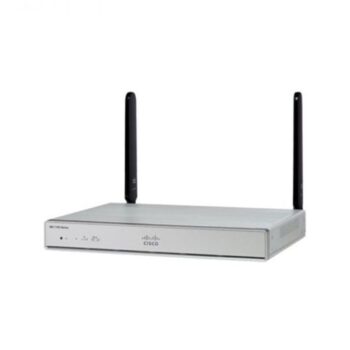

C1111-8PWA Overview
