C1101-4PLTEPWX Cisco 1100 Series Integrated Services Router with LTE and WiFi
C1101-4PLTEPWX Overview
The Cisco 1100 Series Integrated Services Router (ISR) is equipped with Cisco IOS® XE Software, offering WAN connectivity, robust security, and both wired and wireless access in a high-performance solution. Perfect for small to medium-sized enterprise branch offices, the C1101-4PLTEPWX model features 4 LTE ports and a WiFi domain for versatile networking options.
C1101-4PLTEPWX Technical Specifications
Cisco 1100 Series Integrated Services Router
GE Ports: 1
GE/SFP Combo: N/A
ADSL2/VDSL2+: N/A
LTE Advanced (CAT6): N/A
802.11ac: 2X2 MIMO
Total GE Ports: 4
PoE: N/A
PoE+: N/A
Integrated USB 3.0 AUX/console: Yes (No AUX)
Pluggable: Yes (All)
Memory (Default and Maximum)
DRAM: 4 GB
Flash: 4 GB
Console
· Micro USB console (USB 3.0).
Mini-USB port (reserved)
· Micro-USB port for remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).
802.11ac Features
· 2×2 SU-MIMO/MU-MIMO with dual spatial streams.
· Maximal Ratio Combining (MRC).
· Supports 20-, 40-, and 80-MHz channels.
· PHY data rates reach up to 866.7 Mbps (80 MHz on 5 GHz).
· Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).
· 802.11 Dynamic Frequency Selection (DFS).
· Cyclic Shift Diversity (CSD) support.
Software
· Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (8.7 for 1101 series) MR1 or later.
External Power Supply
· AC input voltage: Universal 100 to 240 VAC.
· Frequency: 50 to 60 Hz.
· Maximum output power: 66W (default).
· Output voltage: 12 VDC.
· Optional PoE and PoE+:
◦ Single 150W power supply for Cisco 1100-8P series router.
◦ Single 115W power supply for Cisco 1100-4P series router.
· External output voltage: 48 VDC.
USB 3.0 Support
· Compatible USB devices:
◦ USB eTokens and USB flash drives.
· Note: USB 3.0 devices can be connected externally.
LED Indicators
· WWAN (green/amber).
· SIM status (green/amber).
· Received signal strength indication (RSSI) bar (green).
· 3G/LTE service (green/amber).
· GPS (green/amber).
· Speed and link indicators for Gigabit Ethernet WAN port (green).
· Speed and link indicators for all Fast Ethernet LAN ports (green).
Physical Dimensions
(H x W x D)
1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (including rubber feet models)
Weight: 3.34 lb (1.51kg)
Environmental Operating Range
· Nonoperating temperature: -4° to 149°F (-0° to 65°C).
· Nonoperating humidity: 5% to 95% relative humidity (noncondensing).
· Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).
· Operating temperature: 32° to 113°F (0° to 45°C).
· Operating humidity: 10% to 85% relative humidity (noncondensing).
· Operating altitude: 0 to 10,000 ft (0 to 3000 m).
Related Products
JZ074A Overview
The HPE OfficeConnect OC20 is a user-friendly dual radio 802.11ac wireless access point designed for small businesses. It provides a cost-effective solution that can be easily set up and managed without needing technical skills. With a mobile app, you can quickly establish your network and monitor it remotely. Enjoy Gigabit speeds, reliable connectivity, and built-in application filtering for enhanced security. Backed by a 3-year warranty.
FAP-221C-A Overview
The FAP-221C-A Fortinet Fortiap 221c is an IEEE 802.11ac wireless access point, delivering speeds up to 867 Mbps. It operates on both ISM and UNII bands, featuring 4 antennas and 4 internal antennas. This device includes 1 RJ-45 network port and is designed for easy ceiling mounting.

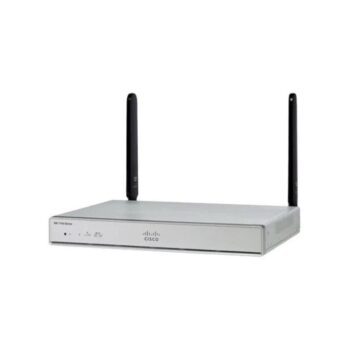

C1111-4PWN Overview
The Cisco 1100 Series Integrated Services Router (ISR) combines Cisco IOS® XE Software to deliver WAN capabilities, robust security, and both wired and wireless access. Ideal for small to medium-sized enterprise branch offices, the C1111-4PWN features 4 ports, Dual GE WAN, and 802.11ac -N WiFi functionality.
C1113-8PWE Overview
The Cisco 1100 Series Integrated Services Router (ISR) offers advanced Cisco IOS® XE Software, combining WAN connectivity, robust security, and both wired and wireless access in a single, high-performance device. This model, C1113-8PWE, is tailored for small and medium enterprise branch offices, featuring G.FAST GE Router capabilities and 802.11ac WiFi support.
C1111-8PLTEEAWR Overview
The Cisco 1100 Series Integrated Services Router (ISR) is equipped with Cisco IOS® XE Software, offering comprehensive WAN capabilities, robust security, and both wired and wireless access in a single high-performance unit. The C1111-8PLTEEAWR model features 8P Dual GE WAN with LTE Advanced, SMS/GPS, and 802.11ac -R WiFi, making it perfect for small to medium enterprise branch offices.

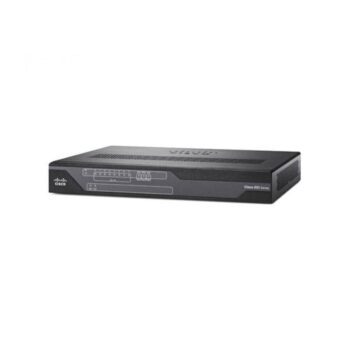

CISCO887VGW-GNA-K9 Overview
