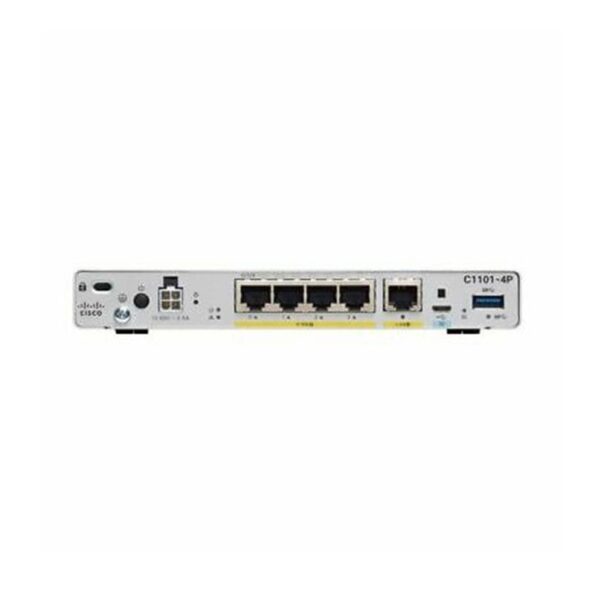

C1101-4P Cisco 1100 Series Integrated Services Router – 4 Port WAN
C1101-4P Overview
The Cisco 1100 Series Integrated Services Router (ISR) provides a robust platform featuring Cisco IOS® XE Software, ensuring WAN connectivity and comprehensive security alongside wired and wireless access. Perfectly suited for small to medium-sized enterprise branch offices, the C1101-4P model boasts 4 GE Ethernet WAN ports for versatile networking.
688.00 AED
C1101-4P Technical Specifications
Cisco 1100 Series Integrated Services Router
Description
The ISR 1101 serves as a 4 Ports GE Ethernet WAN Router.
Product Line: Integrated Services Router
Product Series: C1101
Physical Properties
Dimensions (H x W x D): 1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm), including rubber feet models.
Weight: 1.89 lb (0.86 kg)
AC Power Input voltage
Universal 100 to 240 VAC
Frequency: 50-60 Hz
Maximum output power: 30W (default)
Output voltages: 12 VDC
Console Port
Micro USB console (USB 3.0)
WAN GE: 1
LAN GE: 4
Default and maximum DRAM: 4GB
Default and maximum flash: 4GB
Approvals and compliance
Emission standards include 47 CFR Part 15, CISPR 32 Edition 2, and several EN standards among others.
Immunity
CISPR24: 2010 + A1: 2015 and others applicable standards.
Environmental
Operating humidity: 10% to 85% (noncondensing).
Operating temperature: 32° to 113°F (0° to 45°C).
Transport and storage conditions: Nonoperating temperature of -4° to 149°F (-0° to 65°C) and humidity of 5 to 95% (noncondensing).
Nonoperating altitude: 0 to 15,000 ft (0 to 4570m).
