C1-C9500-24Q-E Cisco ONE Catalyst 9500 24-Port Switch
C1-C9500-24Q-E Overview
The Cisco Catalyst 9500 series switches are top-tier enterprise solutions for core and aggregation layers, offering comprehensive programmability and serviceability. They provide exceptional scalability and buffering capabilities tailored for demanding enterprise applications.
C1-C9500-24Q-E Technical Specifications
Cisco ONE Catalyst 9500 Network Essentials 24-Port Managed Switch
Cabinet Features
Chassis includes a built-in RFID tag.
Interface Specifications
Connector Type: QSFP+
Quantity: 24 QSFP+
Type: 40 Gbit LAN
Networking Capabilities
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ae, 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3ad (LACP), 802.3ae, 802.3ba, 802.3x, 802.3z
Features include 802.1x authentication, CoAP support, Control Plane Protection (CoPP), First Hop Security (FHS), Flexible NetFlow (FNF), IPv6 support, MACsec support, and more.
Physical Characteristics
Form Factor: Rack-mountable
Dimensions: 21.5 in depth, 1.7 in height, 17.5 in width
Weight: 25.75 lbs
Power Specifications
Power Supply: Internal, 950 Watt, with optional redundancy. Hot-plug capable.
Environmental Specifications
Operating Temperature: 32 °F to 104 °F; Storage Temperature: -4 °F to 149 °F
Miscellaneous
Color: Gray, with a MTBF of 127,660 hours.
Related Products
C9500-32C-EDU Overview
The Cisco Catalyst 9500 Series Switches represent the latest evolution in enterprise-class core and aggregation layer switches, offering comprehensive programmability and serviceability. Powered by an x86 CPU, this series is designed for security, IoT, and cloud applications, marking it as the first dedicated 40 Gigabit Ethernet switch line for enterprise campuses.
SSD-120G Overview
Enhance your server’s storage with the Cisco Solid State Drive. With a capacity of 120 GB, it is designed to handle enterprise-level data and backups efficiently. This hot-swap SSD incorporates a USB 3.0 interface, ensuring rapid data transfer for your critical applications.
C9500-24Q-E Overview
C9500-24Q-E is part of the Cisco Catalyst 9500 Series, which represents the next evolution in enterprise-class core and aggregation layer switches. These switches are designed to support full programmability and serviceability, with a focus on security, IoT, and cloud integration, making them ideal for modern enterprise campuses.
C9K-PWR-C5-BLANK Overview
This is a blank cover designed specifically for the Catalyst 9500 power supply. It provides a secure and protective solution for your Cisco Catalyst 9500 series equipment, ensuring optimal performance and safety in your network setup.
C9500-24Q-A Overview
C9500-24Q-A is part of the Cisco Catalyst 9500 Series, representing the next generation of enterprise-class core and aggregation layer switches. Designed for programmability and serviceability, this series is built on an x86 CPU, making it Cisco’s premier fixed core and aggregation platform for security, IoT, and cloud applications.
C9500-ACCKITH-23I= Overview
- This accessory kit is designed for the Cisco Catalyst 9500 Series, suitable for high-end 23-inch rack mounting.
Cisco C9500-24Y4C-A
C9500-24Y4C-A is a high-performance 24-port switch from the Cisco Catalyst 9500 Series, featuring 1/10/25G capabilities and a Network Advantage License. Designed for enterprise core and aggregation layers, this switch offers enhanced programmability and serviceability, making it ideal for security, IoT, and cloud applications.
C9500-40X-E Overview
C9500-40X-E is a member of the Cisco Catalyst 9500 Series. These next-generation switches are designed for enterprise-class core and aggregation layers, offering full programmability and serviceability. Built on an x86 CPU, they represent Cisco’s premier fixed core and aggregation platform, optimized for security, IoT, and cloud computing, and are the first in the industry to provide 40 Gigabit Ethernet capabilities.
C9500-48Y4C-1A Overview
The Cisco Catalyst 9500 Series Switches represent the forefront of enterprise-class core and aggregation layer switching technology. Designed for full programmability and serviceability, this platform is purpose-built for security, IoT, and cloud applications. It is the industry’s pioneering 40 Gigabit Ethernet switch line tailored for enterprise campus environments.
C9500-16X-2Q-A Overview
The C9500-16X-2Q-A is a 16-port 10G switch from the Cisco Catalyst 9500 series, equipped with 2 x 40GE Network Modules and an Advanced License. This next-generation switch is designed for enterprise-class core and aggregation layers, offering programmability and serviceability, ideal for security, IoT, and cloud applications.

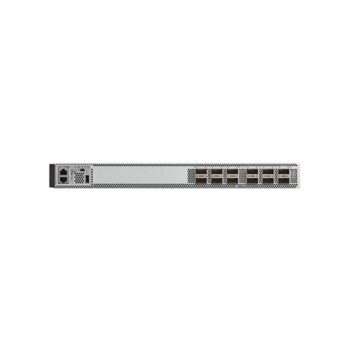

C9500-12Q-EDU Overview
