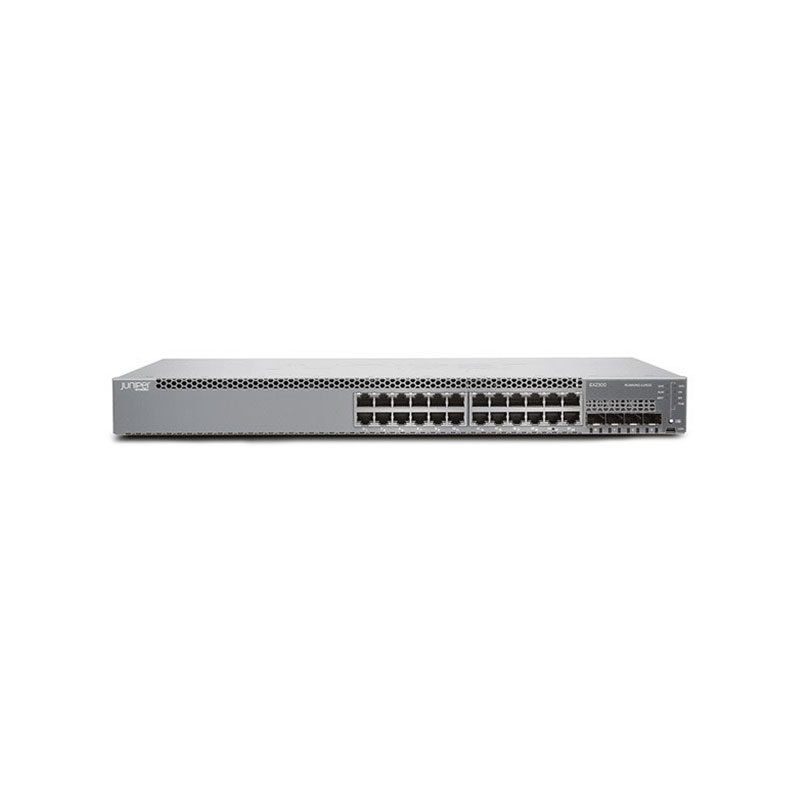

B-EX3400-24T-EDU Juniper Networks EX3400-24T Ethernet Switch
B-EX3400-24T-EDU Overview
The EX3400 Ethernet Switches provide an economical solution for demanding converged networks that handle data, voice, and video in enterprise access environments. These compact, rack-mountable 1U devices deliver impressive performance and management capabilities. Featuring 24 10/100/1000BASE-T ports, this model also supports IEEE 802.3af Power over Ethernet to power various IP devices such as telephones, cameras, and access points.
1,380.00 AED
B-EX3400-24T-EDU Technical Specifications
Juniper Networks EX Series EX3400-24T Switch – 24 Managed Ports
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: EX3400-24T
Kit: E-Rate Bundle
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Processor
Installed Quantity: 1
Clock Speed: 1 GHz
RAM
Installed Size: 2 GB
Flash Memory
Installed Size: 2 GB
Performance
Throughput: 214 Mpps, Switching capacity (64-byte packet size): 288 Gbps
Capacity
IPv4 routes (Multicast): 4000, Max neighboring networks: 8000, VLAN STP instances: 510, QoS hardware queues per port: 12, IGMP snooping entries: 1000, Virtual interfaces (VLANs): 4093, ARP entries: 8000, IPv6 hosts: 18000, LAG groups: 128, IPv4 hosts: 36000, Max member ports per LAG: 16, MSTP instances: 64, IPv6 routes (Multicast): 2000, ACL entries: 1500
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Form Factor: Rack-mountable
Stackable: Yes
Max Units in Stack: 10
Ports Quantity: 24
Advanced Switching: Layer 3
Routing Protocols: RIP-2, MSDP, Static IPv4/IPv6 routing, RIPng, CIDR, IS-IS, RIP-1
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9216 bytes
Manageable: Yes
Remote Management Protocols: RMON 2, SSH, TFTP, SNMP 1/2c/3, HTTPS, CLI, HTTP, Telnet
Features: Dynamic ARP Inspection, Energy Efficient Ethernet, VLAN support, Quality of Service (QoS), DHCP relay, and more.
Dimensions & Weight
Width: 17.4 inch
Depth: 13.8 inch
Height: 1.7 inch
Weight: 12.65 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 113°F
Min Storage Temperature: -40°F
Max Storage Temperature: 158°F
Humidity Range Operating: 10 – 85% (non-condensing)
Humidity Range Storage: 0 – 95% (non-condensing)
