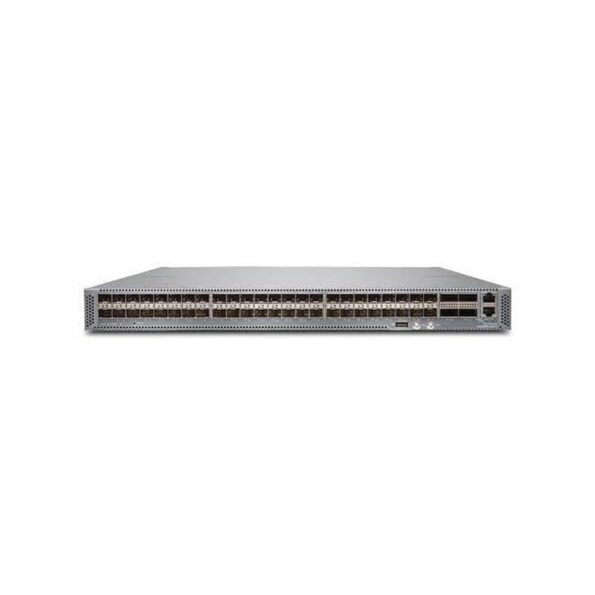

ACX5448-AC-AFI Juniper Networks Universal Metro Router – High Capacity Solution
ACX5448-AC-AFI Overview
The Juniper Networks ACX5000 series of Universal Metro Routers addresses the evolution of metro network architectures by enhancing operational intelligence from the service provider edge to the access network. This series streamlines access and aggregation architectures, significantly cutting CapEx and OpEx, while providing robust performance and scalability with diverse port densities and interface types.
53,850.00 AED
ACX5448-AC-AFI Technical Specifications
Juniper Networks ACX Series Universal Metro Router ACX5448-M
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks ACX Series Universal Metro Router
Model: ACX5448-M
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Performance
Performance: Throughput of 800 Gbps
Networking
Type: Router
Form Factor: Rack-mountable
Connectivity Technology: Wired
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 100 Gigabit Ethernet
Routing Protocol: RSVP, IGMP, IS-IS, BGP
Remote Management Protocol: SNMP 3, SNMP 2, YANG, NETCONF, CLI
Features: IGMP snooping, DiffServ Code Point (DSCP) support, Layer 3 VPN (L3VPN) support, Integrated Routing and Bridging (IRB), and many more.
Compliant Standards: IEEE 802.1ad, IEEE 802.3, IEEE 802.1Q, and others.
Interface Provided
Interfaces: 44 x 10Gb Ethernet / 1Gb Ethernet – SFP/SFP+, 6 x 100Gb Ethernet – QSFP28
OS Provided
Type: JUNOS
Power Device
Type: Internal power supply
Nominal Voltage: AC 120/230 V
Dimensions & Weight
Width: 17.3 inches
Depth: 25.5 inches
Height: 1.7 inches
Weight: 26.12 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 131°F
Humidity Range Operating: 5 – 90% (non-condensing)
