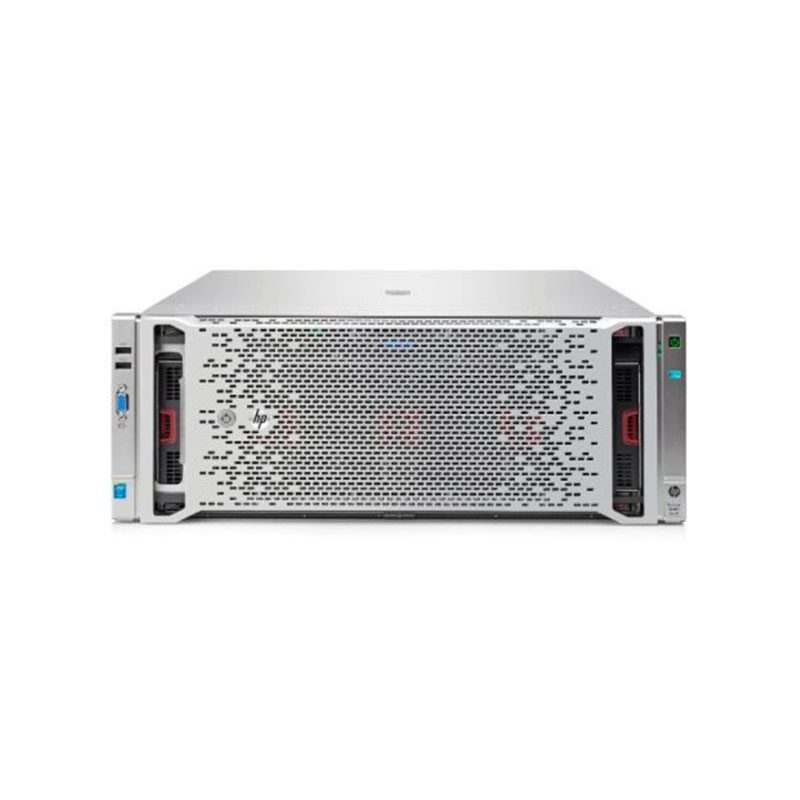

793312-B21 HP Proliant DL580 Gen9 High-Performance Server
793312-B21 Overview
Experience exceptional performance with the 793312-B21 HP Proliant DL580 Gen9 Server, featuring 4x Intel Xeon E7-8890v3 processors at 2.5GHz, 256GB DDR4 SDRAM, dual 10 Gigabit Ethernet ports, and four 1500W RPS in a 4U rack mount design.
44,745.00 AED
793312-B21 Technical Specifications
HP Proliant DL580 Gen9 – High-Performance 4U Rack Server
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Part Number: 793312-B21
Product Type: Proliant DL580 Gen9 – 4U Rack Mount Server
PROCESSOR & CHIPSET:
CPU: 4x Intel Xeon E7-8890v3 / 2.5 GHz
Max Turbo Speed: 3.3 GHz
Cores: 18 per CPU
Max CPU Quantity: 4
Upgradability: Yes
Main Features: Intel Turbo Boost Technology 2
Chipset: Intel C602j
CACHE MEMORY:
Cache Type: Smart Cache
Installed Size: 180 MB
Per Processor Cache: 45 MB
MEMORY:
Capacity: 256 GB / 6 TB (Max)
Type: DDR4 SDRAM
Form Factor: DIMM 288-Pin
Slots: 96 x DDR4 RAM Slots
Configuration: 16 x 16 GB
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
Type: 1 x RAID – PCIe 2.0 x4
Interface: SATA 6Gb/s / SAS 12Gb/s
Controller: Smart Array P830i with 4GB FBWC
Channels: 8
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Buffer Size: 4 GB
NETWORK & COMMUNICATION:
Bus Type: PCI Express 2.0 x8
Ports: 2 x 10 Gigabit Ethernet
Controller: HP Flexfabric 534FLR-SFP+
Remote Management: Integrated Lights-Out 4
POWER DESCRIPTION:
Type: Hot Plug Power Supply
Redundancy: Yes
Installed Qty: 4
Nominal Voltage: AC 120/230 V (50/60 Hz)
Power Output: 1500 Watts.
